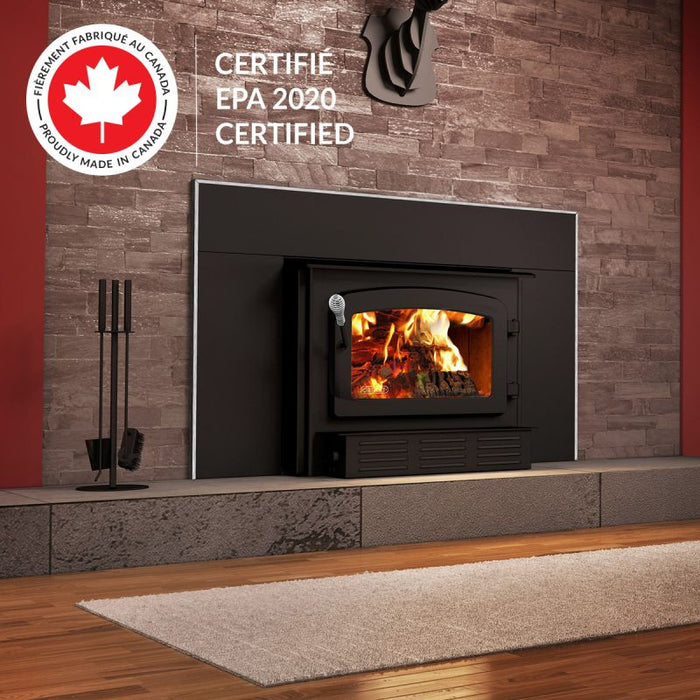

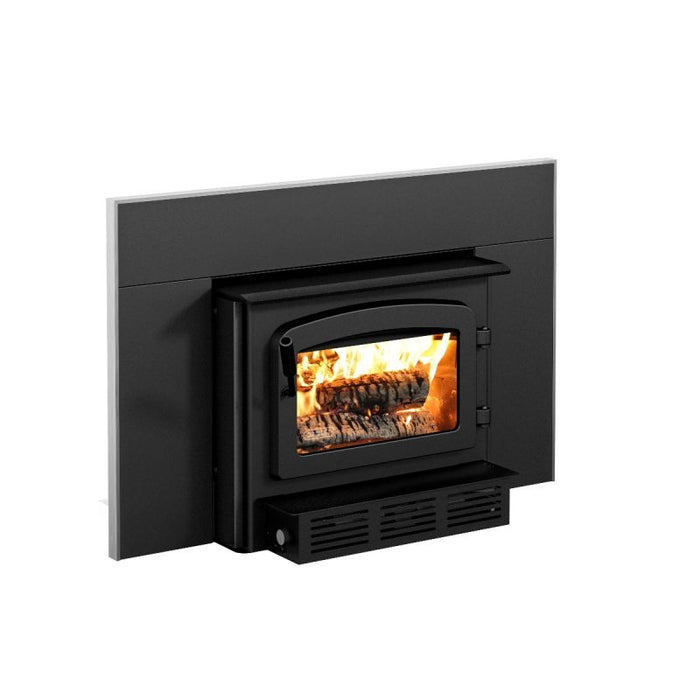

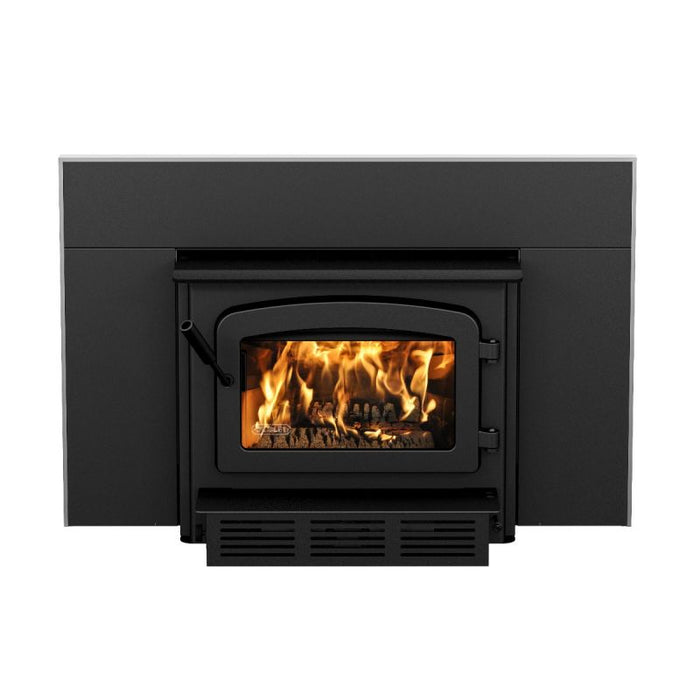

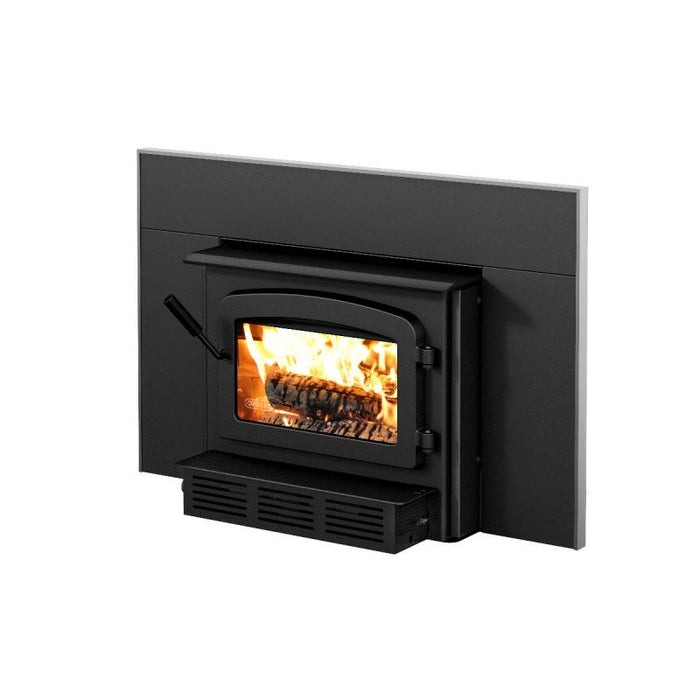

Drolet Escape 1800-I Wood Stove Insert Trio (25ft) DB03127K is a premium heating solution engineered to bring high efficiency and modern aesthetics to your home. Built for spaces up to 2,100 ft², this EPA-certified, non-catalytic wood insert delivers powerful heat output up to 75,000 BTU/h while minimizing emissions at just 2.3 g/h. The unit features a durable 5/16" steel top, stainless steel heat shield, and a high-performance blower for optimal heat distribution. Designed to convert your masonry fireplace into an efficient heat source, this package also includes a 25' stainless steel liner kit, an elegant 32" x 50" faceplate with brushed nickel trim, and ceramic glass with a cast iron door frame. Proudly made in Canada and backed by a limited lifetime warranty, the Escape 1800-I is both a stylish and practical investment for long, cozy winters.
Features:
Heats areas up to 2,100 ft²
Maximum heat output: 75,000 BTU/h
2.4 ft³ firebox fits logs up to 20"

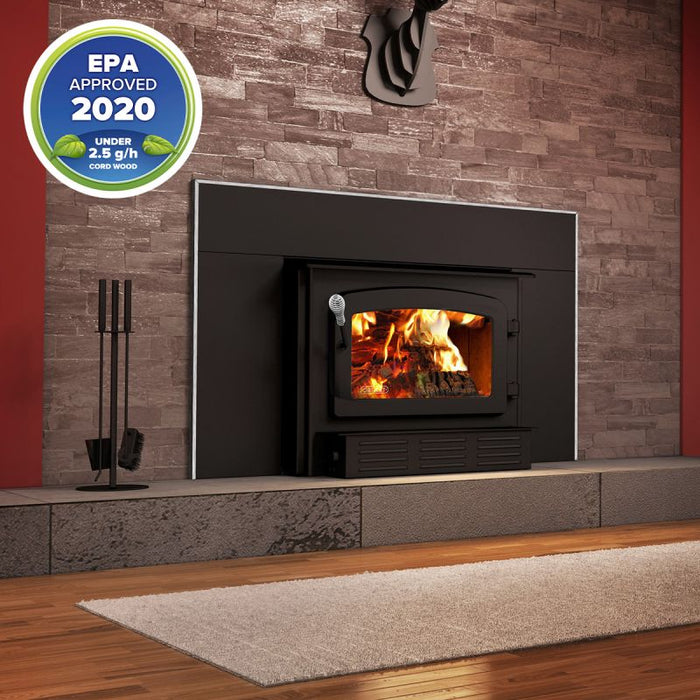

EPA-certified, low emissions (2.3 g/h)
Includes 25' stainless steel liner kit and chimney cap
Brushed nickel trimmed faceplate and ceramic glass
High-performance 144 CFM blower included
Burn time up to 8 hours
Made in Canada with a limited lifetime warranty
Weight: 405 lbs
Included:6" liner kit (25' Vortex flexible stainless steel liner, connector, 13" x 13" top plate, chimney cap with no screen), 32" x 50" faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper
*Installation must be done according to the specifications and drawings detailed in the owner's manual.
A contact number is required for all Drolet, Century, and England's Stove Works orders at checkout
Average overall efficiency-dry cordwood (HHV) (5) (6)
69 %
Average overall efficiency-dry cordwood (LHV) (5) (7)
74 %
Optimum efficiency (1) (2)
77 %
Optimum heat transfer efficiency (8)
75 %
Average particulate emission rate (3)
1.54 g/h
Average CO (10)
89.4 g/h
Size
Large
Premium quality blower included (CFM)
144
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 7/8"
Distance-center of the flue outlet to side unit
13 1/2"
Chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'
Overall dimension (Width)
28 3/8"
Overall dimension (Height)
23 1/8"
Overall dimension (Depth)
26 3/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16" x 9 1/4"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 1/2"
Maximum log length
20"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Height)
23 3/8"
Minimum fireplace opening (Width)
28 7/8"
Minimum fireplace opening (Depth)
15 3/4"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA / ASTM WK47329
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Warranty
Limited lifetime
Shipping weight
405 lb (178 kg)
1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%. 2. Optimum overall efficiency at a specific burn rate (LHV). 3. This appliance is officially tested and certified by an independent agency. 4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%. 5. As measured per CSA B415.1-10 stack loss method. 6. Higher Heating Value of the fuel. 7. Lower Heating Value of the fuel. 8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion. 9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure. 10. Carbon monoxide.
Clearance
Canada
United States
Clearance - Combustible side wall to unit
16"
16"
Clearance - Combustible side mantle to unit
9"
9"
Clearance - Combustible top mantle to unit
27"
27"
Clearance - Top of the unit to a 12" combustible mantle shelf
