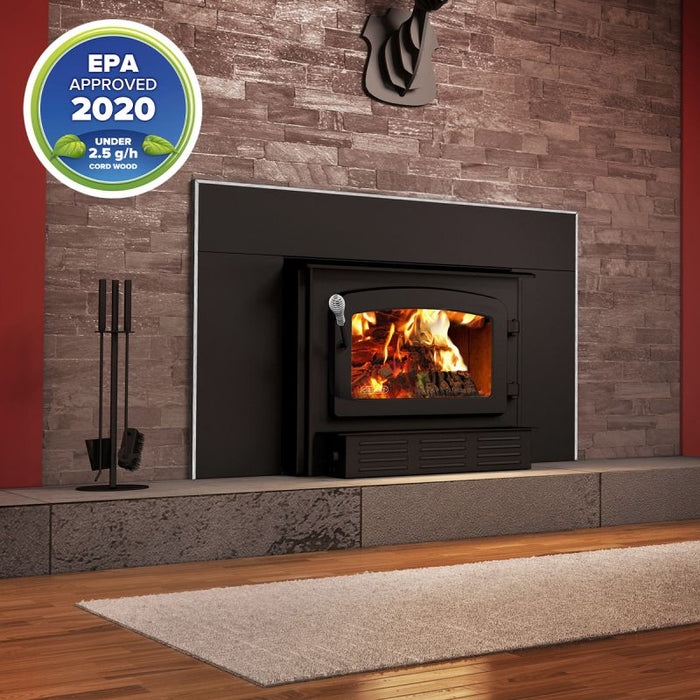

Drolet Escape 1800-I Wood Insert Trio (35 FT) DB03128K transforms your traditional masonry fireplace into a high-efficiency heating powerhouse. Designed to warm spaces up to 2,100 ft², this EPA-certified insert combines performance, durability, and style. With a powerful 75,000 BTU/h heat output and up to 8 hours of burn time, it handles logs up to 20" with ease in its spacious 2.4 ft³ firebox. The included stainless steel liner kit, blower, and stylish brushed nickel faceplate make installation seamless and elevate your home's ambiance. Crafted in Canada from 5/16" thick steel and boasting a stainless-steel heat shield, this insert is built to last and backed by a limited lifetime warranty.
Features:
Heats up to 2,100 ft² with 75,000 BTU/h maximum output
EPA-certified and meets 2020 high-efficiency standards
Includes 25' stainless steel liner kit with top plate and chimney cap
Elegant 32" x 50" faceplate with brushed nickel trim and built-in blower
2.4 ft³ firebox accommodates 20" logs and burns up to 8 hours
Durable 5/16" steel construction with ceramic glass door
Non-catalytic combustion and stainless-steel secondary air system
Made in Canada with limited lifetime warranty
Weight: 405 lbs

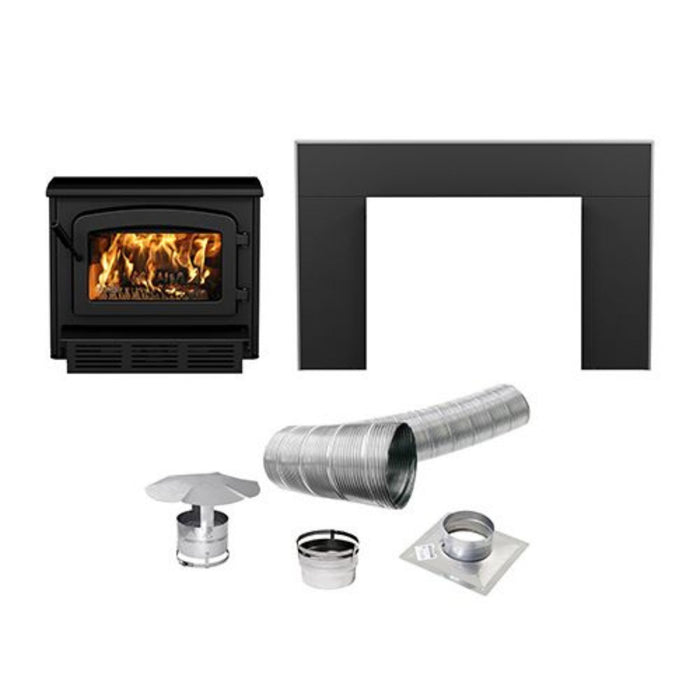

Included:6'' liner kit (35' Vortex flexible stainless steel liner, connector, 13'' x 13'' top plate, a chimney cap with no screen), 32'' x 50'' faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper.
*Installation must be done according to the specifications and drawings detailed in the owner's manual.
A contact number is required for all Drolet, Century, and England's Stove Works orders at checkout
Average overall efficiency-dry cordwood (HHV) (5) (6)
69 %
Average overall efficiency-dry cordwood (LHV) (5) (7)
74 %
Optimum efficiency (1) (2)
77 %
Optimum heat transfer efficiency (8)
75 %
Average particulate emission rate (3)
1.54 g/h
Average CO (10)
89.4 g/h
Size
Large
Premium quality blower included (CFM)
144
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes

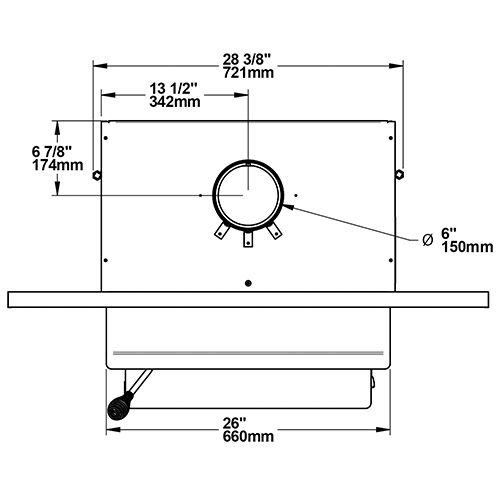

Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 7/8"
Distance-center of the flue outlet to side unit
13 1/2"
Chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'

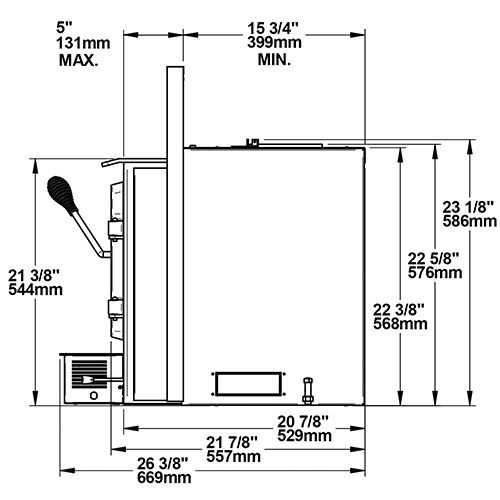

Overall dimension (Width)
28 3/8"
Overall dimension (Height)
23 1/8"
Overall dimension (Depth)
26 3/8"
Door type
Single, glass with cast iron frame

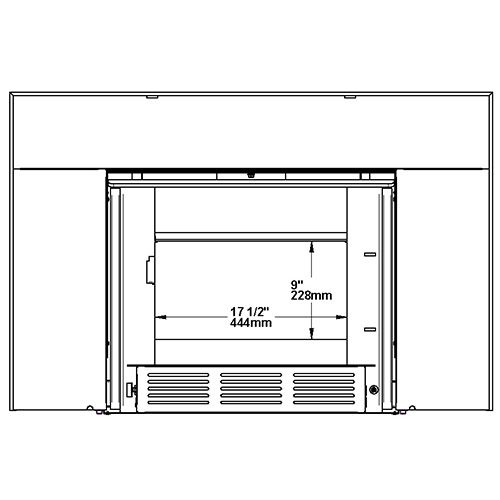

Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass

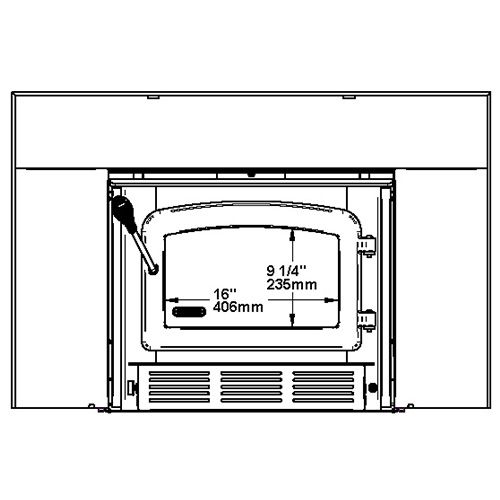

Glass surface - W x H
16" x 9 1/4"

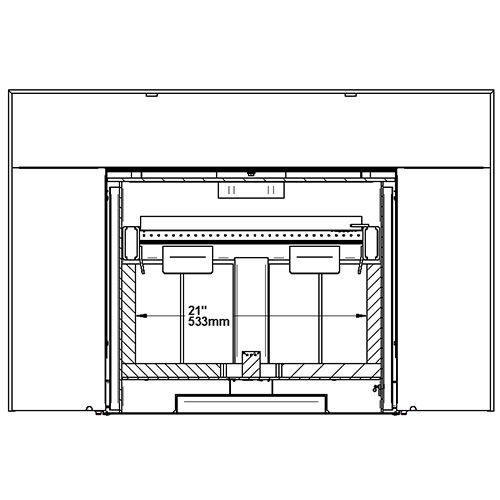

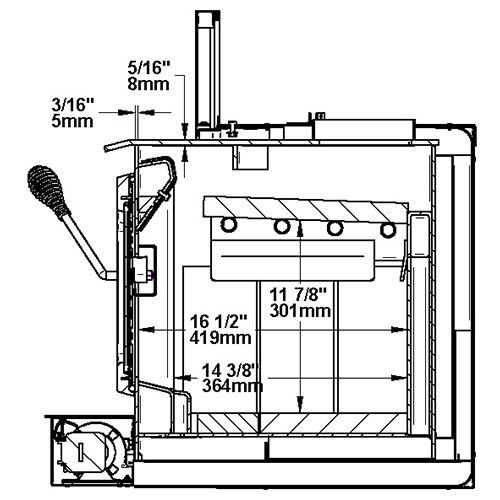

Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 1/2"
Maximum log length
20"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Height)
23 3/8"
Minimum fireplace opening (Width)
28 7/8"
Minimum fireplace opening (Depth)
15 3/4"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA / ASTM WK47329
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Warranty
Limited lifetime
Shipping weight
405 lb (178 kg)
1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%. 2. Optimum overall efficiency at a specific burn rate (LHV). 3. This appliance is officially tested and certified by an independent agency. 4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%. 5. As measured per CSA B415.1-10 stack loss method. 6. Higher Heating Value of the fuel. 7. Lower Heating Value of the fuel. 8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion. 9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure. 10. Carbon monoxyde.
Clearance
Canada
United States
Clearance - Combustible side wall to unit
16"
16"
Clearance - Combustible side mantle to unit
9"
9"
Clearance - Combustible top mantle to unit
27"
27"
Clearance - Top of the unit to a 12" combustible mantle shelf
