Emporia Smart Home Level 2 48 AMP EV charger - Emporia - Rise

Emporia Smart Home Level 2 48 AMP EV Charger

by Emporia

Emporia Smart Home Level 2 48 AMP EV Charger

SKU EMEVSE1-W

Sold out

$699.00

$699.00 - $699.00

$699.00

$600.00

$600.00 - $600.00

$600.00

Availability:

Out of stock

Availability:

Out of stock

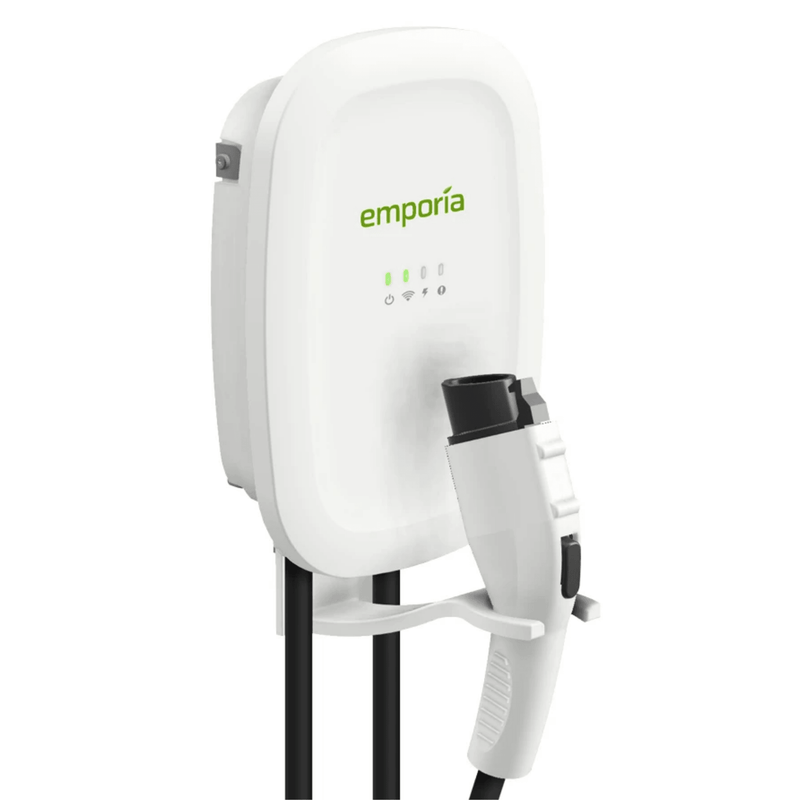

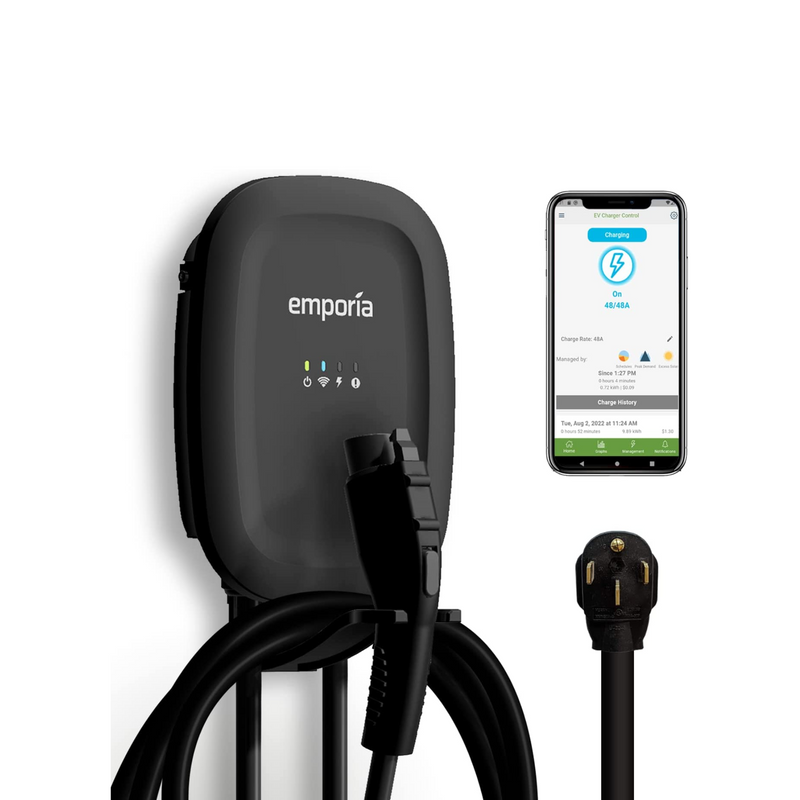

The Emporia EV Charging Station is a Level 2 electric vehicle charger that charges any EV up to 40 amps with NEMA 14-50P or up to 48 amps with hardwired installation. It has a 24' cable with an SAE J1772 connector, working with all-electric cars. Its watertight NEMA Type 4 enclosure is made to withstand the elements outdoors.

*The charger is compatible with any EV; the charger comes with an SAE J1772 connector (adapter required for Tesla EVs) and a 24' cable with integrated cable management.

Quantity

Features and Specifications

Name: Emporia Smart Home Level 2 48 AMP EV Charger
Rating: 5.00 (8 reviews)

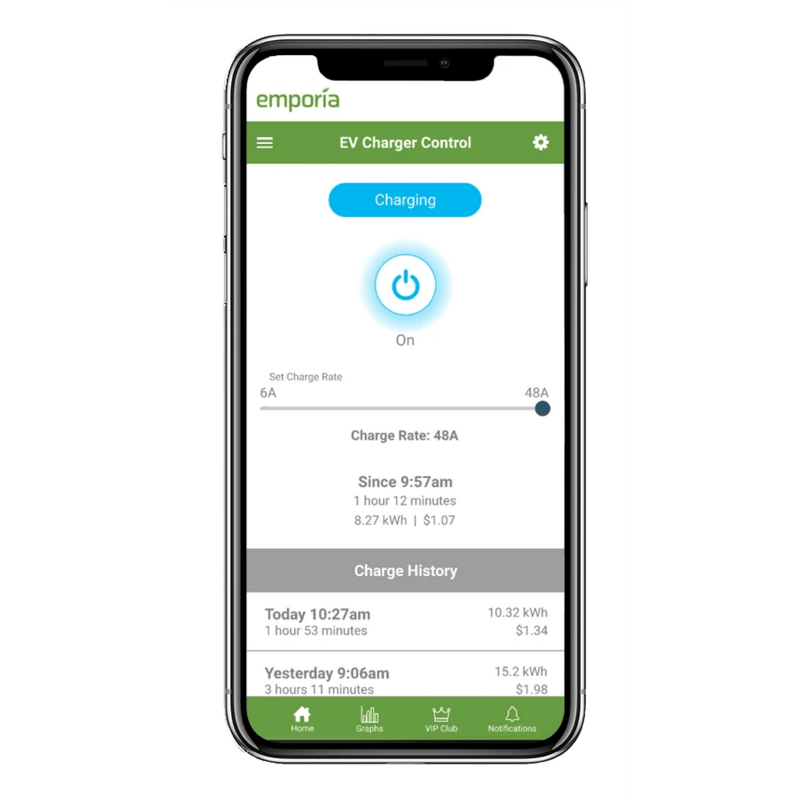

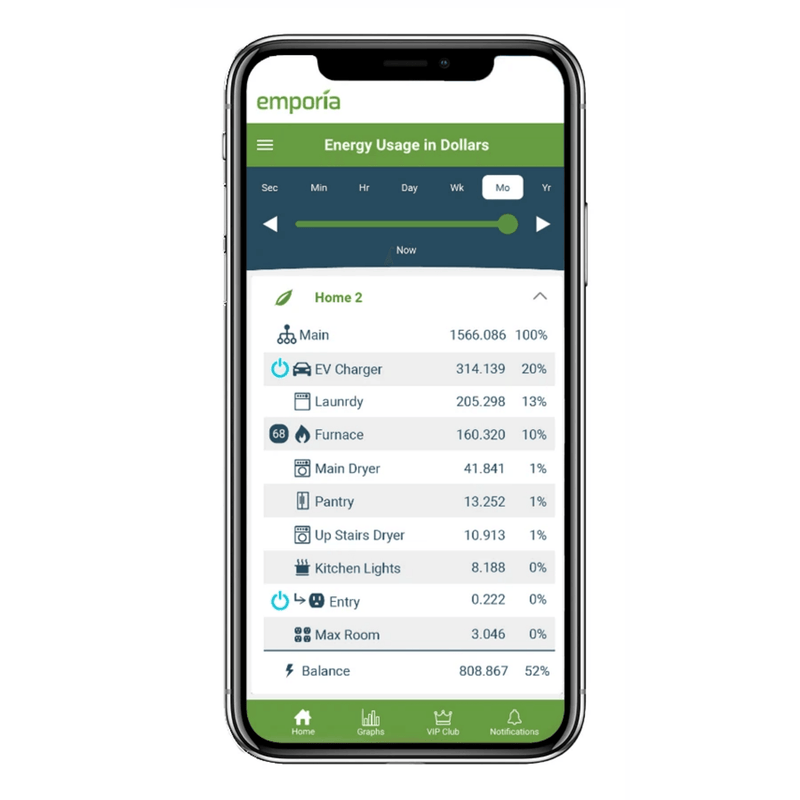

Features	Level 2 / 48 amp Compatible with any EV (adapter required for Tesla) Schedule charging with app Track energy use with app Integrated cable management For residential and commercial 2.4 GHz 802.11b/g/n WiFi UL Listed Easy to use and install

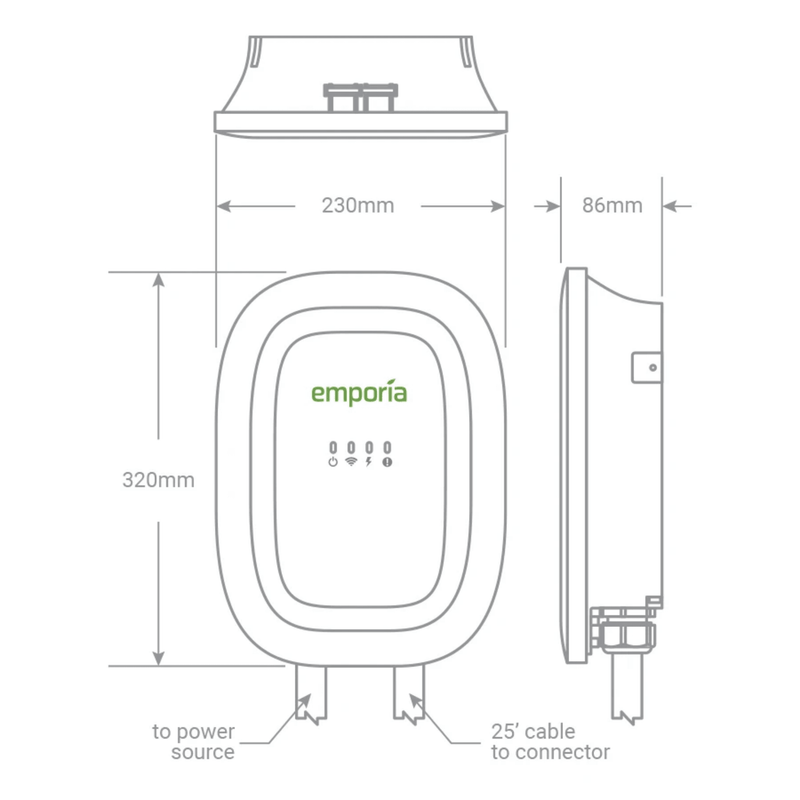

Charging Station dimensions	12.6" x 9" x 3.4" (320mm x 230mm x 86mm)

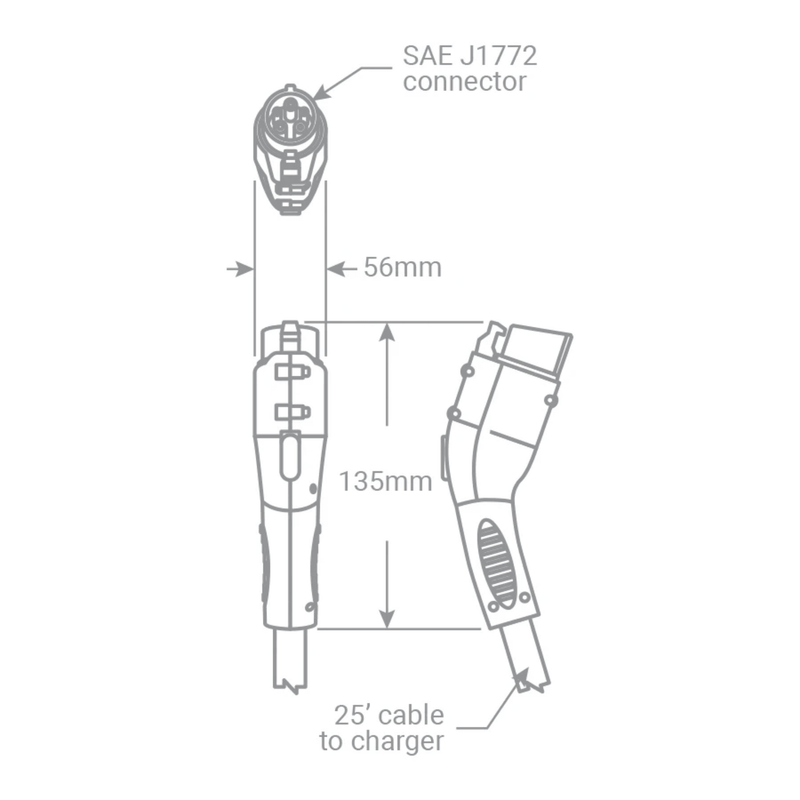

Charging Gun dimensions	5.3" x 2.2" (135mm x 56mm)
Input Voltage	208/240VAC 50/60Hz
Power Charge	11.5kW (240V/48A) / 9.6kW (240V/40A) / 10kW (208V/48A) / 8.3kW (208V/40A)
Required Breaker	Dedicated 50A+ dual pole for 40A Dedicated 60A+ dual pole for 48A

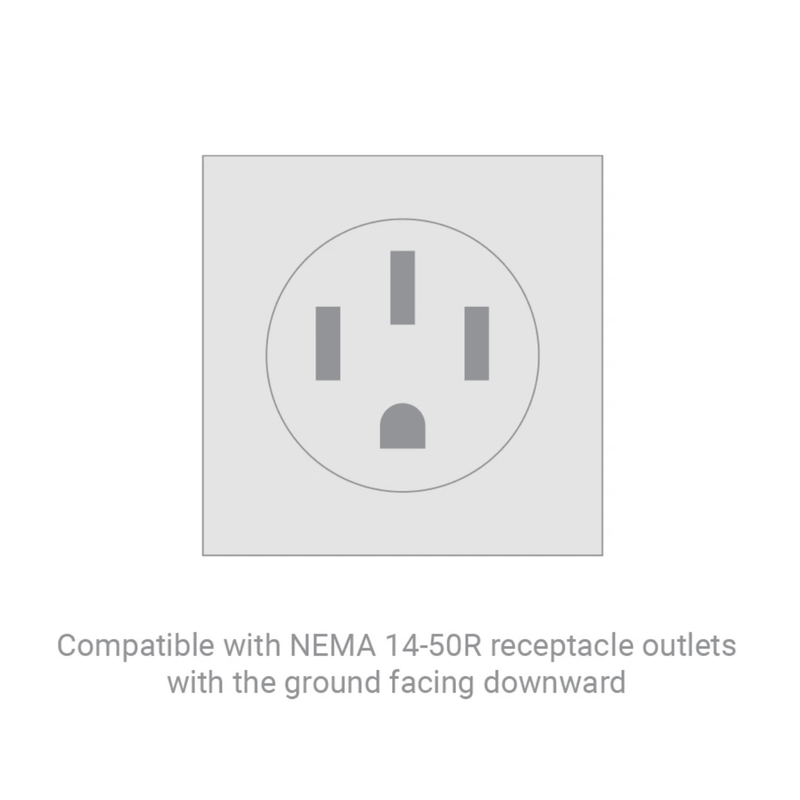

Power Wiring	NEMA Type 14-50P (up to 40A) with 12" cable compliant with 2017 NEC Section 625.17(A)(3) / Hardwired (up to 48A)
Enclosure	IP66 indoor/outdoor
Ground Fault Interrupt	15mA to 20mA trip sensitivity to protect against electric shock.
Internal Temperature	Charging station internal temperature is continuously monitored and shut off if the board temperature exceeds 98° C.
Missing Ground Detection	Safety ground is constantly monitored during operation. Charging is shut off if the ground is missing.
Pilot Signal	EV connector / cable is de-energized when exposed to a strain that could result in the exposure of live parts.
Power interlock	EV connector / cable is de-energized when uncoupled from EV
Self Check	Sequence performed during start up, every three hours, and before charging to ensure unit is working properly and safely upon power-up.
Stuck Relay Detection	Check to ensure relays are functioning properly and providing proper power gating.
Surge Detection	Constantly monitors for power surges during operation. Charging is shut off if a surge is detected.
Ventilation Required	Checks for ventilation requests from EV and prevents charging if ventilation is not available.

Technical Specs and Data Sheet

Spec Sheet download

Get Trade-Only Pricing & Perks – For Free

Join contractors, builders, and trade professionals who count on Rise for competitive trade pricing, priority support, and quality products that get the job done.

Get Pro Access

Trade-only pricing
Priority service
“Shop only the good stuff”

Customer reviews

What Customers Are Saying

Real feedback from homeowners, contractors, and professionals.

4.9 484 verified reviews

Powered byJudge.meVerified reviews. Real customers.

5 stars: 8 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Loving my Emporia Smart Home Level 2 48 AMP EV Charger

Easy to instal, works beautifully. I’m Loved it!

Emporia EV charger

Overall a good experience. Item received a day before the expected delivery date, which was nice.

Emporia Smart Home Level 2 48 AMP EV Charger

WAs only able to use 40 amp charging current because of no room in my breaker box for 60 amp breaker. Turn out no big deal. It charges my 2019 Niro EV at 7.43 KW and my 2022 EV6 at 9.27 KW which are the highest rates they can intake (i think). Anyway very happy with the ESVE. Cable is substantial and long enough to reach rear of EV6 and front of Niro EV side by side in the garage. I phone app works well.

Emporia Smart Home Level 2 48 AMP EV Charger

Installation was simple and charger works as expected at 40 amps.

Great Charger!

Easy to install, and highly reliable system! Very recommended.

Great product, great value, excellent customer service!

I purchased this EV charger from Rise and installed it about 2 weeks ago. It’s an amazing charger and so was the Customer service from the vendor.It charges both Tesla and Other EVs equally as well. It’s a best value for the price.

Best EVSE for the price and features

Most Versatile EVSE for home charging.
Selectable up to 48 amps, WiFi and app.
Can also commonness with whole house electric usage.

Ev Charger

The charger was easy to install. Setup was easy with phone app. My wife can now charge her Jeep in 2 hours instead of 11. So she is happy!

Emporia Smart Home Level 2 48 AMP EV Charger
