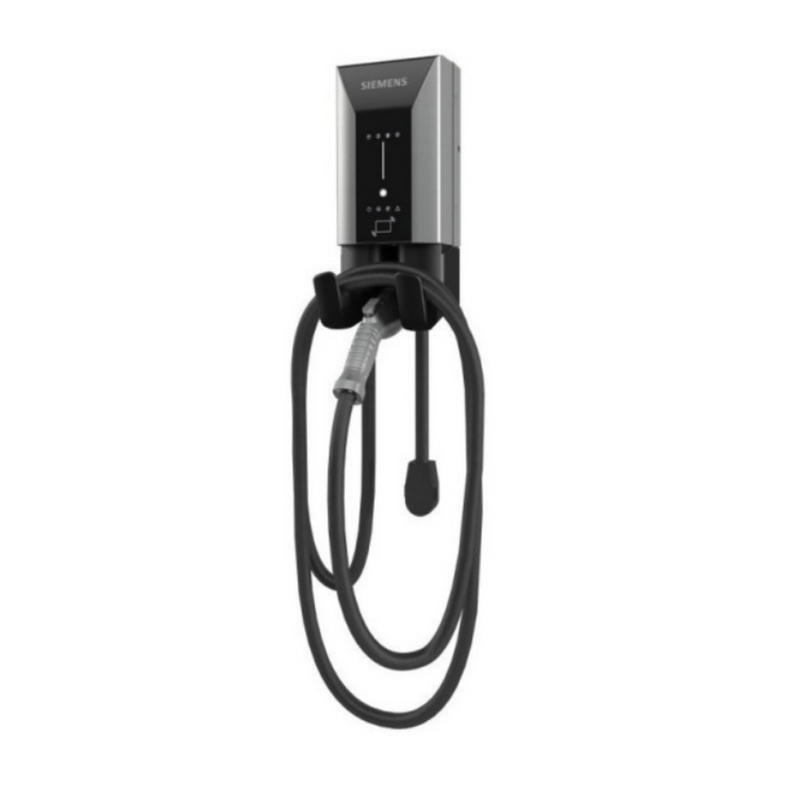

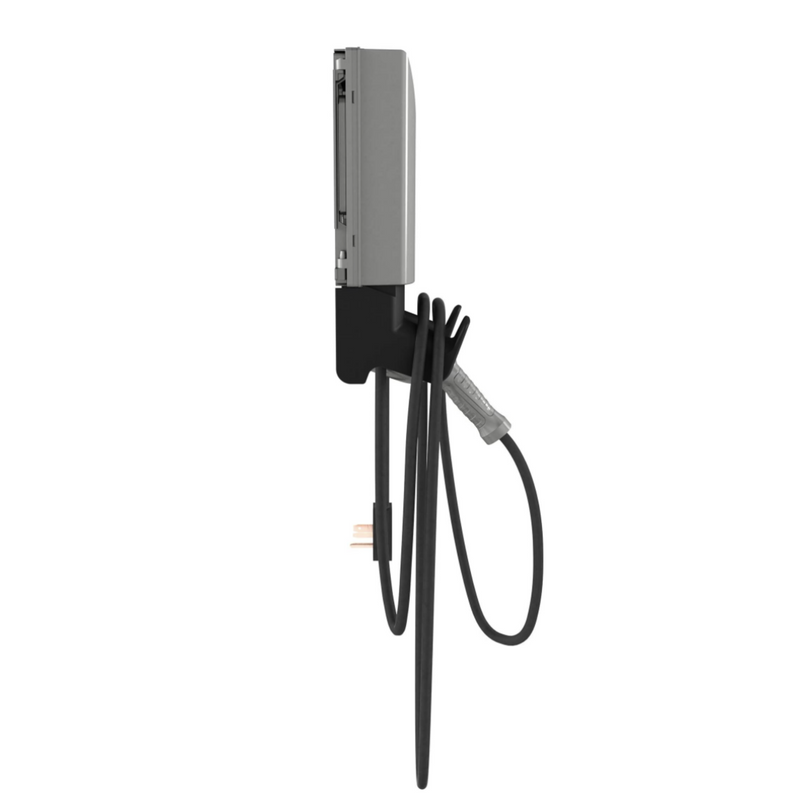

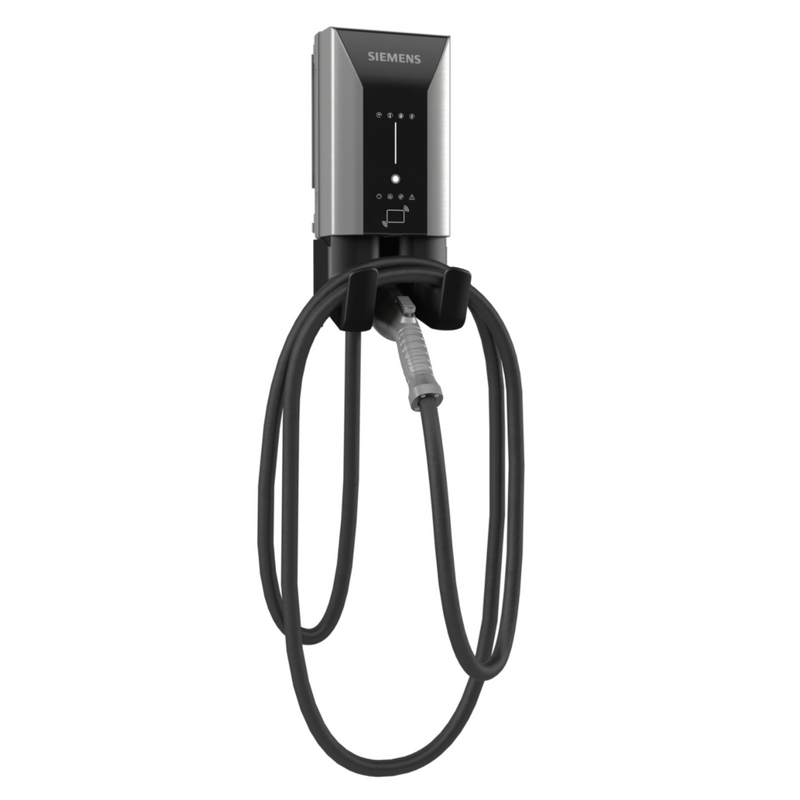

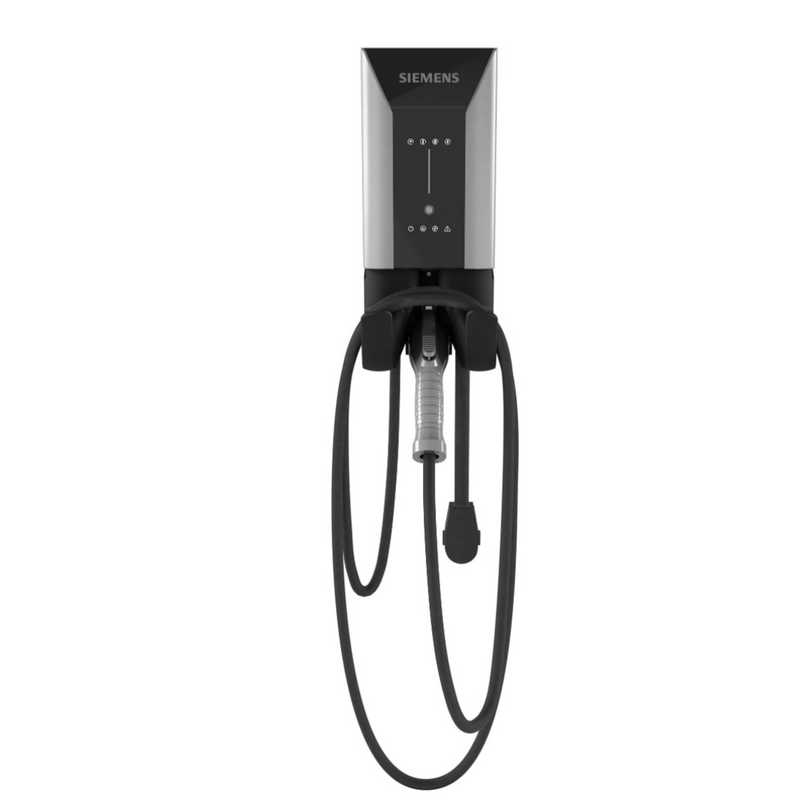

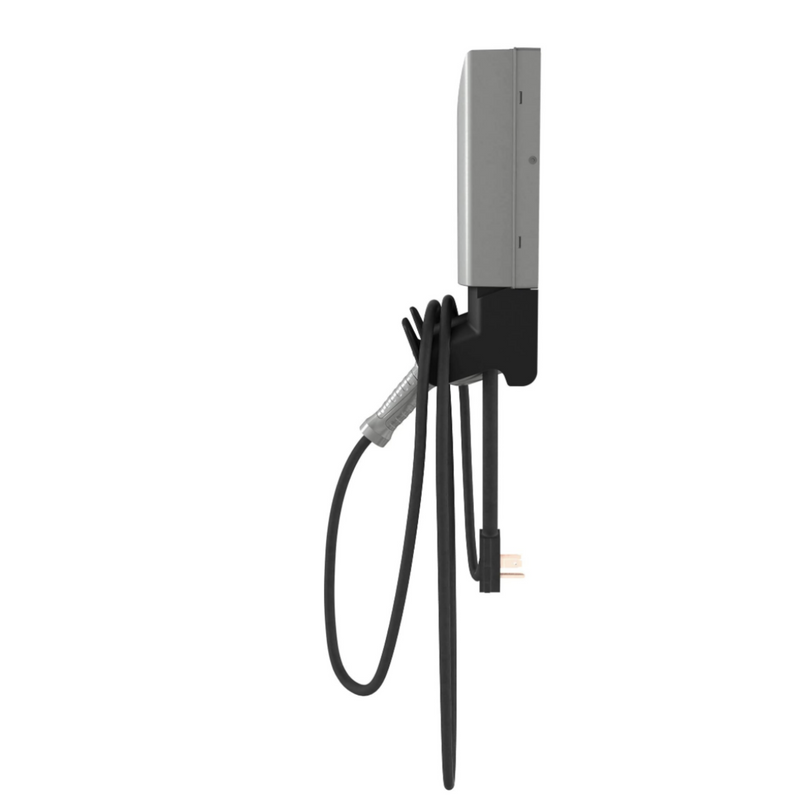

Siemens Residential Smart VersiCharge EV Charger Level 2 - 48A

SKU 8EM13125CF180FA3
by Siemens
Sold out
Original price $1,299.00 - Original price $1,299.00
Original price
$1,299.00
$1,299.00 - $1,299.00
Current price $1,299.00
Availability:
Out of stock

Siemens Smart VersiCharge chargers have stood for superior quality, ruggedness, and proven technology for more than a decade and have reliably provided millions of charges to EV (electric vehicle) drivers worldwide.

The Third Generation Smart VersiCharge AC 48A home charger is Energy-star certified and offers you cutting-edge technology with the most affordable pricing.

Quick Details:

  • Single phase: 208 V / 240 V AC, 60 Hz
  • Wi-Fi and Ethernet Ready with App to monitor charging and track usage
  • 48A Maximum Current
  • J1772 plug with 20 ft cable
  • Wall and post mounting
  • High-speed Level 2 charger equipped with J1772 single-phase connector enabling rapid charging​
  • Indoor and Outdoor Applications, NEMA 4, IK 8
  • Silver Metallic (Pantone 10077), Black holster
  • Standard 3-year warranty
  • Rise recommends installation by a qualified person following all local electrical codes.
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
2,934kg
shipping emissions removed
That's like...
7,510
miles driven by an average gasoline-powered car
We fund innovations in...
Direct Air Capture
Bio Oil
Mineralization

Benefits and Features

Charging modeLevel 2
Vehicle connectionJ1772 plug with 20 ft cable, 40/48 A / integrated cable management
AC power outputSingle phase up to 9.6 kW (40 A) or 11.5 kW (48 A)
Touch ButtonTime delay, return to max power level, reset ground fault
Charging status LEDsPower, Cold start, time delay, charging state, reduced power level, authentication
Communication status LEDsConnected / not connected during operation, signal strength during commissioning
InterfacesEthernet, Wi-Fi
Configurationvia Siemens mobile app
Back-end protocolOCPP 1.6, upgrade-able to OCPP 2.0
Software upgradeover the air (OTA)
Power supply voltageSingle phase: 208 V / 240 V AC, 60 Hz
Rated current settings (A)12, 16, 24, 32, 40, 48
Cross wire sectionSingle phase: 8 Awg / 6 Awg (75C rated wire)
Network typeSingle phase / split phase
Energy metering Revenue accurate, ANSI C12.20 compliant metering
Ground fault protection20 mA
DC residual current monitoringNot applicable
Over voltage protectionUnder voltage: 167 V (min. 80 V) / over voltage: 267 V (max. 275 V)
Over current protectionCurrent +10% above configured threshold, min. +2A, 5 seconds
Operating altitude9,840 ft
Environmental ratingIndoor and Outdoor, NEMA 4, IK 10
Dimensions (H×W×D)40.9 × 18.1 × 9.6 (cm) / 16.10 × 7.09 × 3.78 (in)
Weight7.7 (kg) / 17 (lbs)
Ambient conditionsOperating temperature: -35°C to 50°C (-31°F to 122°F), Storage Temp.: -40°C to 60°C (-40°F to 140°F), 98% non condensing
ColoursSilver Metallic (Pantone 10077), Black holster
cUL listed

According to UL 1998, UL 991, UL2594/CSA C22.2 No.280/NMX-J-677-ANCE, UL 2231-1/CSA C22.2

No.281.1/NMX-J-668-1, UL 2231-2/CSA C22.2 No.281.2/NMX-J-668/2-ANCE, UL 2251/CSA C22.2

No.282/NMX-J-678-ANCE

EMCFCC Part 15.247, FCC Part 15B, FCC Part 15C

Installation Guide and Data sheet

Warranty

3 Year Siemens Limited Warranty
