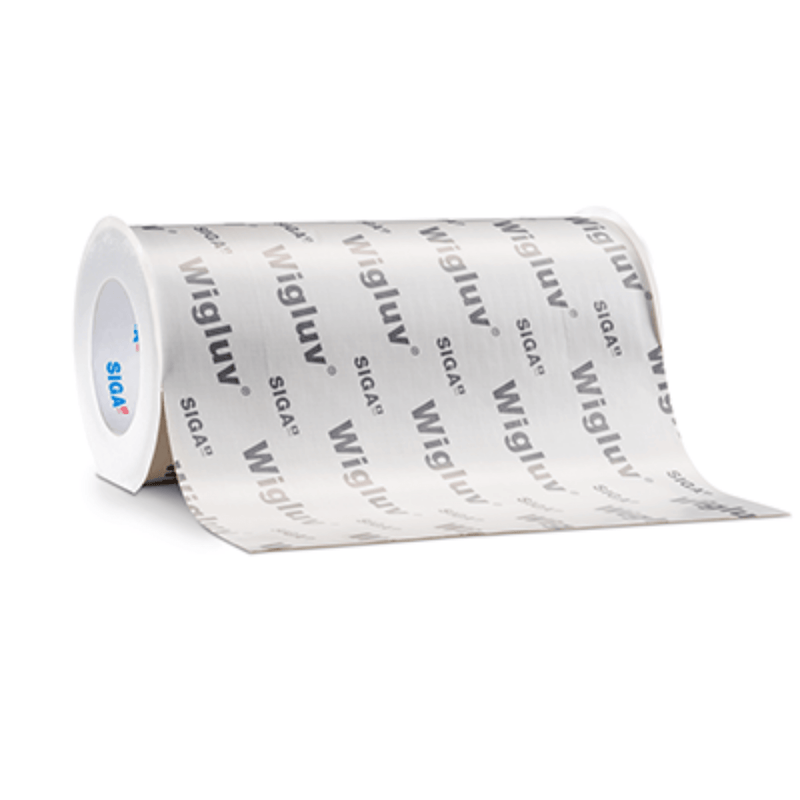

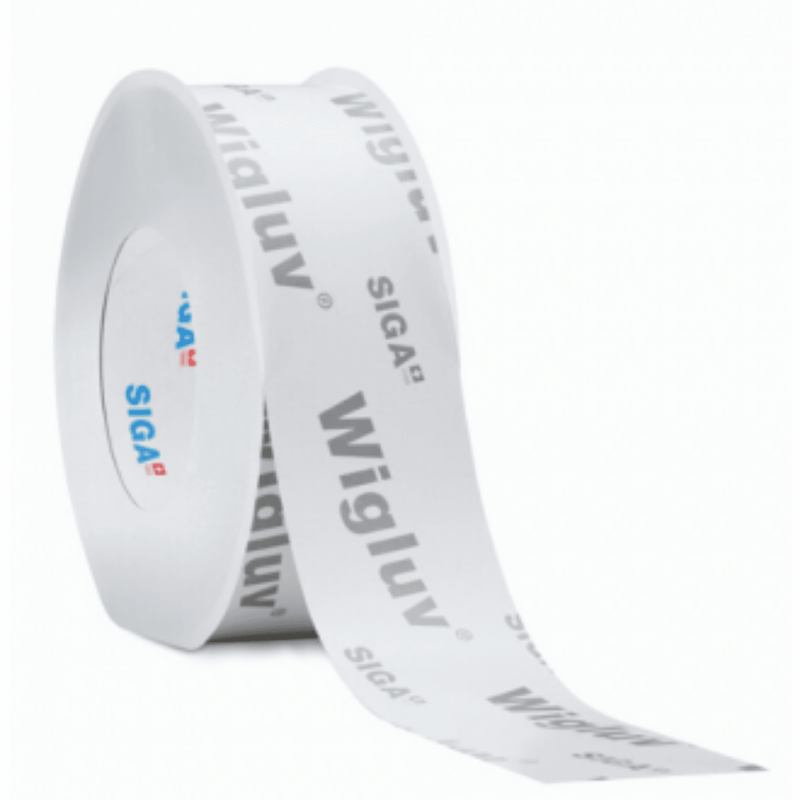

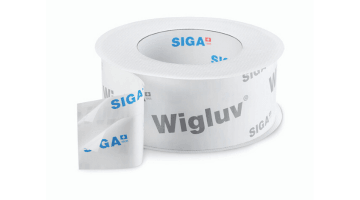

SIGA Wigluv Single-Sided Adhesive Tape

SKU 7510-6040

$434.98 - $803.40

$801.45

$434.98 - $803.40

$801.45

Availability:

in stock

Availability:

in stock

Availability:

in stock

Availability:

in stock

Availability:

in stock

Availability:

in stock

SIGA Wigluv Single-Sided Adhesive Tape is a diffusible, rainproof, high-performance adhesive tape designed for permanent windtight bonding of component layers outdoors. Ideal for roof and façade applications, Wigluv helps create durable weather-resistant connections on membranes, panels, and exterior building assemblies.

Features:

Single-sided high-performance adhesive tape
Diffusible and rainproof
Designed for permanent windtight outdoor bonding
Suitable for roof and façade membranes
Available in multiple Wigluv variants and widths

Quantity

Specifications

Product	Wigluv® 20/40	Wigluv® 60	Wigluv® 100/150	Wigluv® 230/300
Quantity Data	82ft per roll (10 rolls per box), 2.4 inches wide	131ft per roll (10 rolls per box), 2.4 inches wide	100: 82ft per roll (6 rolls per box), 3.9 inches wide 150: 82ft per roll (4 rolls per box), 5.9 inches wide	230: 82ft per roll (2 rolls per box), 9.06 inches wide 300: 82ft per roll (2 rolls per box), 12.6 inches wide
Use On	Diffusible, rainproof adhesive tape with slit backing strip for airtight connection to window and door frames.	Diffusible, rainproof adhesive tape for windtight bonding of roof and facade membranes.	Diffusible, rainproof adhesive tape for windtight bonding of under-roof and facade panels.	Diffusible, rainproof adhesive tape for windtight bonding of under-roof and facade panels.
Thickness	20 mm / 40 mm	60 mm	100 mm / 150 mm	230 mm / 300 mm
Temperature Resistance	-40 °F to +212 °F -40 °C to +100 °C
Processing Temperature	from +14 °F from -10 °C
Atmospheric exposure	Max. 12 months
Air Permeance (ASTM E2178)	Pass: < 0.004 cfm/ft²@1.57 psf Pass: (< 0.02 L/s∙m²@ 75 Pa)
Water Vapor Transmission (ASTM E96)	1.7 (97) US Perms (Ng/Pa.m².s)
Water Resistance (AATCC 127 )	197 Inch
Specification for Selfadhered Flashing Used for Window Flashing (AAMA 711-13)	class A (no primer) level 3 Thermal Exposure (80 °C/176 °F for 7 days)
Tensile Strength (ASTM D5034 per AAMA 711-13)	Pass
Water Penetration Resistance Around Nails	Dry / Pass
90 Degree Peel adhesion	OSB: Pass Anodized aluminum: Pass Extruded PVC: Pass Plywood: Pass Accelerated aging with UV-A: Pass Elevated temperature exposure: Pass Thermal cycling: Pass Adhesion after water immersion: Pass
Cold temperature pliability	Cracking: None/Pass Adhesion loss : None/Pass
Resistance to Peeling From Itself	Pass
Chemical compatibility with tested sealants (AAMA 713-08 )	Pass / Level 3 thermal exposure (80 °C/176 °F for 14 days)
Ageing Resistance	High permanent adhesive strength, non-drying and non-embrittling since without caoutchouc, resin or solvent, can reliably and durably absorb structural movements
Suitability for Storage	Unlimited, store in a cool, dry place in its original box
