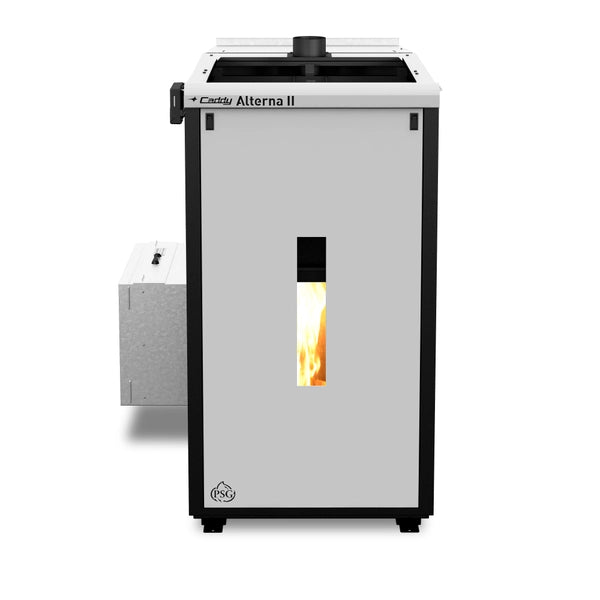

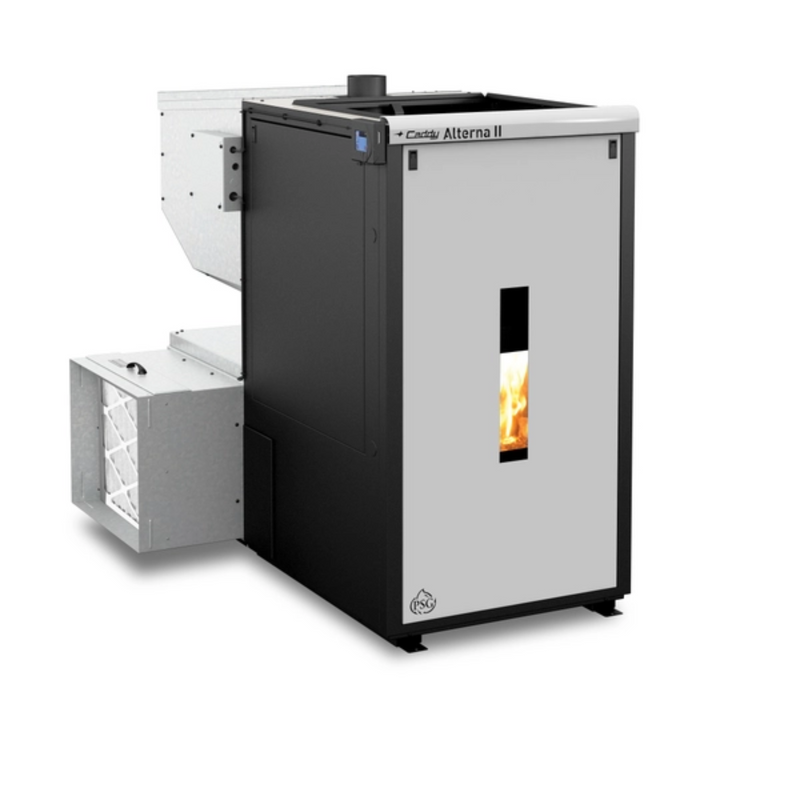

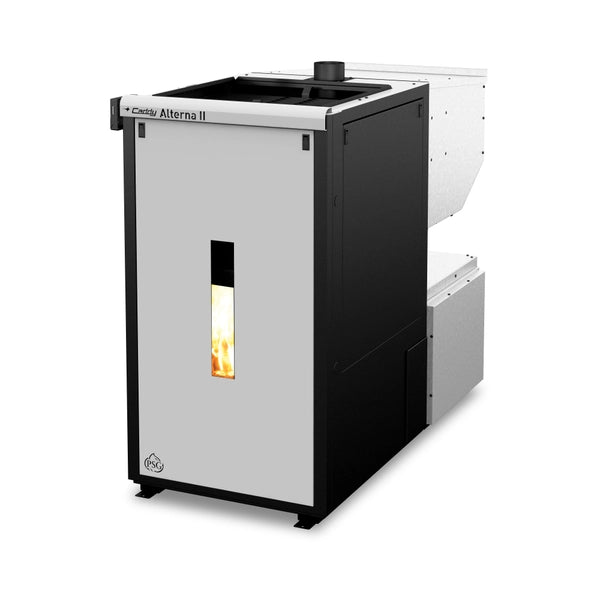

Caddy Alterna II Pellet or Combination Furnace

SKU PF09010

by PSG

$11,299.00 - $11,299.00

$11,299.00

$11,299.00 - $11,299.00

$11,299.00

Availability:

in stock

Earn 3 points for every $1 spent as a Rise Rewards Member

Are You a Pro?

Get exclusive Rise PRO™ pricing and benefits

30-Day Happiness Guarantee

Free Shipping

Authorized Retailer

Ships From Canada

The Caddy Alterna II Pellet or Combination Furnace is an ideal choice for homeowners who want the warmth of a wood-heating system without the hassle. This furnace, tested to the latest CSA B415.1-10 standards, offers impressive heating capabilities for areas between 600 and 3,000 square feet. It features a large 240 lb hopper for extended heating autonomy, and its optional electric component ensures continuous operation even when pellets run out. With a self-cleaning system and maintenance-free components, this furnace guarantees reliable and eco-friendly heating for your home.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Quantity

Specifications

Fuel type	Pellet (Premium grade or better)
Recommended heating area	600 - 3,000 ft²
Hopper capacity	240 lb (109 kg)
Maximum burn time	200 h
Maximum heat input rate	101,000 BTU/h (29.6 kW)
Minimum overall heat output rate	25,216 BTU/h (7.4 kW)
Maximum overall heat output rate	72,447 BTU/h (21.2 kW)
Minimum average overall efficiency (HHV)	67.9 %
Maximum average overall efficiency (LHV)	73.2 %
High-efficiency certified appliance	CSA B415.1-10 approved for Canada
Certified according to applicable standards	By an accredited laboratory (CAN/USA)
Mobile home approved	No
Premium quality blower included (CFM)	G-10 1,650 CFM
**Blower (hp	speed
Flue outlet diameter	4"
Vent dimension	4"
Evacuation direction	Vertical
Type of chimney	ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width)	29 3/8"
Overall dimension (Height)	49 1/2"
Overall dimension (Depth)	57 5/8"
Distance-center of the flue outlet to floor	13 1/2"
Distance-center of the flue outlet to back unit	26 3/4"
Baffle type	Steel
Door type	Single glass with cast iron frame
Glass type	Ceramic glass
Glass surface - W x H	3" x 16"
Minimum delivered heat output rate	22,537 BTU/h (6.6 kW)
Maximum delivered heat output rate	64,737 BTU/h (19 kW)
Minimum average delivered efficiency (HHV)	60.5 %
Maximum average delivered efficiency (LHV)	65 %
Optimum efficiency	82.4 %
Burn rate	1.2 lb/h - 11.8 lb/h
Average particulate emission rate	0.442 lb/mmBTU (0.190 g/MJ)
Average CO	15.41 lb/mmBTU (6.63 g/MJ)
Average electrical power consumption	860 W
Filter - Dimensions (Width x Height x Depth)	16" x 20" x 1"
Air return plenum - Dimension (Width x Depth)	16"
Air return plenum - Dimension (Width)	21 1/4"
Hot air plenum - Height (minimum - maximum)	22"
Hot air plenum - Minimum height of the furnace with plenum	22"
Electric element - Location	Right or left
Electric element - Recommended	15 kW
Electric element - More options	20 kW
Water loop kit - Connection location	Right or left
Water loop kit - Diameter of the connection pipe	3/4"
Water loop kit - Tank volume	60 gal (227 L)
Canadian Standard (emissions)	CSA B415.1-10
Canadian Standard (safety)	CAN/CSA B366.1, CAN/CSA C22.2 no. 236
USA Standard (safety)	UL 391, UL 1995
Warranty	Limited lifetime
Shipping weight	573 lb (260 kg)
Recommended chimney diameter	4"

Clearances
Back wall of the blower box	24"
Side wall	24"
Opposite side wall	4"
Base of the unit to ceiling**	63"
Plenum \| Ducts to the ceiling	First 5' = 2" \| After = 0"
Floor protection in front of the unit (from door opening)	18"

Documentation

Installation and User Manual

Appliance Dimensions

Caddy Alterna II Pellet or Combination Furnace
