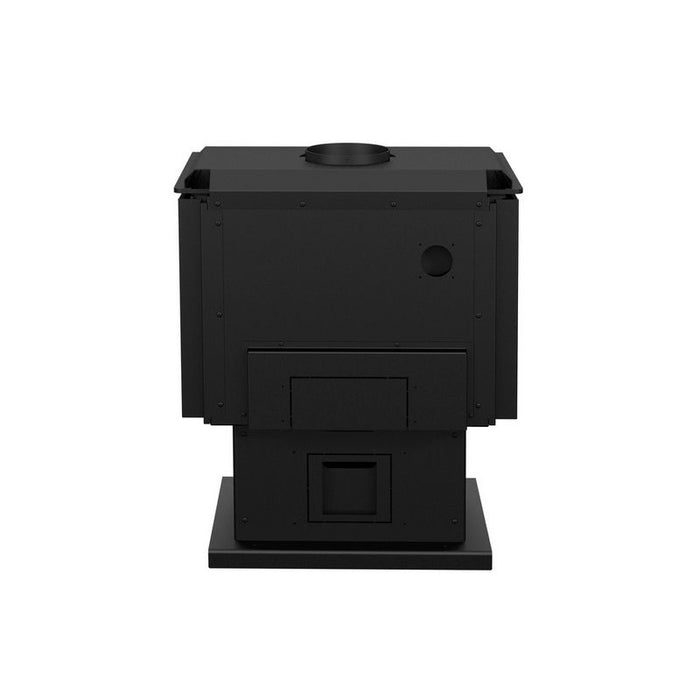

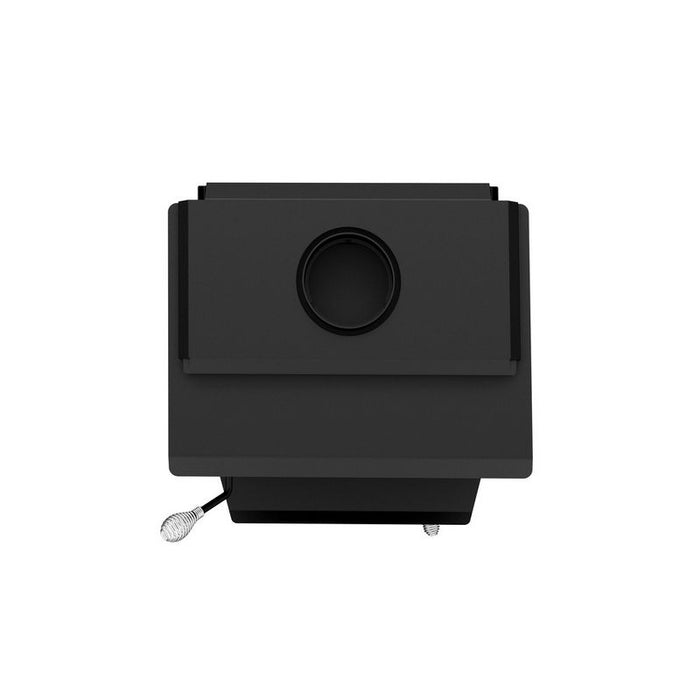

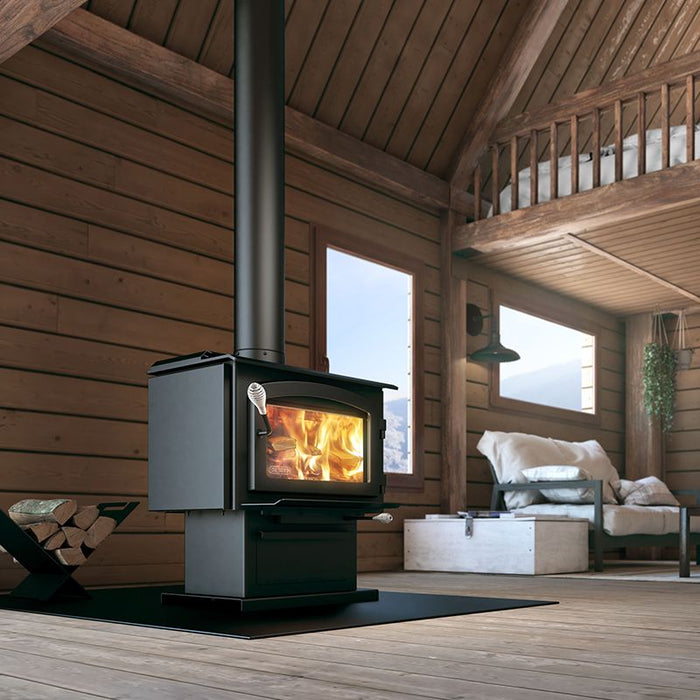

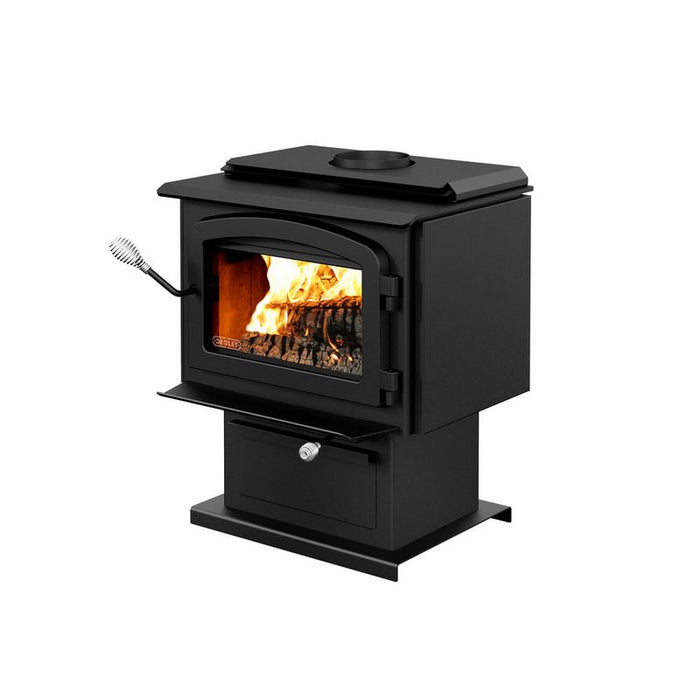

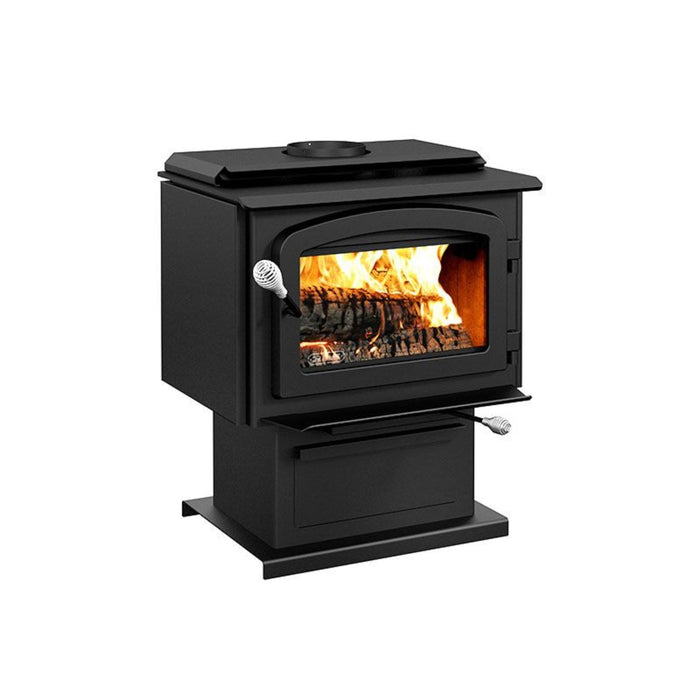

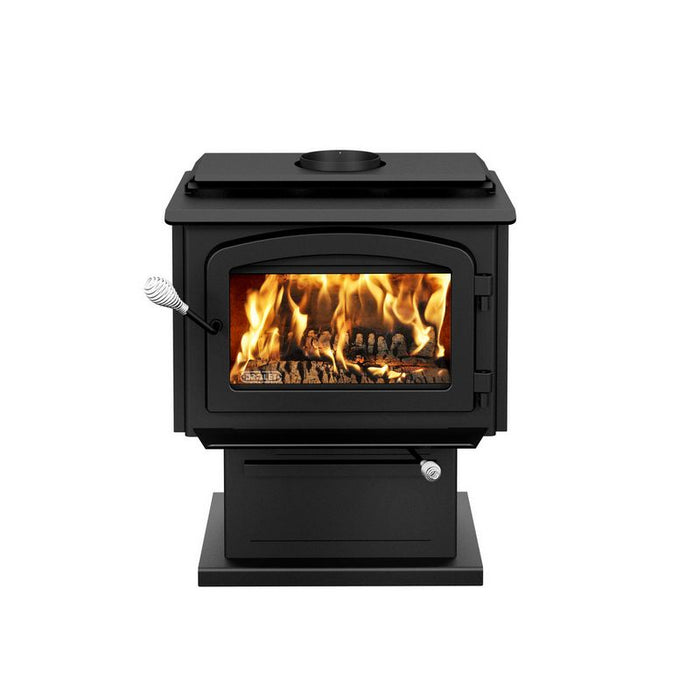

Drolet Escape 1500 Wood Stove DB03135

1 Review
SKU DB03135
by Drolet
Original price $1,649.00 - Original price $1,649.00
Original price
$1,649.00
$1,649.00 - $1,649.00
Current price $1,649.00
Availability:
in stock

The Drolet Escape 1500 Wood Stove DB03135 is an exemplary model of efficiency and environmental consciousness, designed to warm spaces up to 1,800 square feet. With its low particulate emission rate of only 2.4 g/h, it boasts an impressive output of up to 65,000 BTU/h, adhering to stringent EPA standards. This non-catalytic wood stove is thoughtfully equipped with side panels to minimize the clearance needed from combustible materials and features a top heat exchanger that efficiently channels heat forward. The package includes a pedestal with an ash drawer for easy maintenance, an air mate, durable ceramic glass, protective side panels, an ash lip, and an air damper for optimal control. Capable of accommodating logs up to 18 inches and offering a burn time of up to 7 hours, this stove is constructed with a heavy-duty 5/16" steel top, further reinforced with a stainless steel heat shield for enhanced durability. Proudly manufactured in Canada, the Escape 1500 is EPA-certified and comes with a limited lifetime warranty. It is also certified for use in mobile homes and alcove installations, making it a versatile and reliable heating solution for various living spaces.

Features:

  • Up to 7 hours burn time
  • Up to 18" logs
  • Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
  • EPA certified
  • Proudly made in Canada
  • Limited lifetime warranty
  • Certified for mobile home and alcove installation
  • Included: pedestal with ash drawer, air mate, ceramic glass, side panels, ash lip, air damper

A contact number is required for all Drolet, Century, and England's Stove Works orders at checkout.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area (9)500 - 1,800 ft²
Overall firebox volume1.9 ft³
EPA loading volume1.44 ft³
Maximum burn time (9)6 h
Maximum heat output-dry cordwood (4)65,000 BTU/h (19 kW)
Minimum overall heat output rate (4) (5)15,650 BTU/h (4.6 kW)
Maximum overall heat output rate (4) (5)23,300 BTU/h (6.83 kW)
Average overall efficiency-dry cordwood (HHV) (5) (6)70 %
Average overall efficiency-dry cordwood (LHV) (5) (7)75 %
Optimum efficiency (1) (2)78 %
Optimum heat transfer efficiency (8)74 %
Average particulate emission rate (3)1.26 g/h
Average CO (10)58 g/h
SizeMedium
Alcove installation approvedYes
Mobile home approvedYes, with fresh air intake
Premium quality blower included (CFM)Optional
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance-center of the flue outlet to back unit7 1/2"
Distance-center of the flue outlet to side unit12 1/2"
Chimney diameter6"
Type of chimneyCAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height12'
Overall dimension (Width)24 7/8"
Overall dimension (Depth)24 1/2"
Overall dimension (Height)29 7/8"
Door typeSingle, glass with cast iron frame
Door opening size (Width)17 1/4"
Door opening size (Height)8"
Glass typeCeramic glass
Glass surface - W x H15 3/4" x 9 3/4"
Firebox size (Width)19 5/8"
Firebox size (Height)11 7/8"
Firebox size (Depth)13 1/2"
Maximum log length18"
Log positioningLoading over width
Firebox lined with refractory bricksYes
Baffle typeHigh quality vermiculite
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S627
USA Standard (safety)UL 1482, UL 737
Steel thickness-body3/16"
Steel thickness-top5/16"
WarrantyLimited lifetime
Shipping weight332 lb (151 kg)

1. Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
2. Optimum overall efficiency at a specific burn rate (LHV).
3. This appliance is officially tested and certified by an independent agency.
4. The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³. Other performances are based on a fuel load prescribed by the standard. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
5. As measured per CSA B415.1-10 stack loss method.
6. Higher Heating Value of the fuel.
7. Lower Heating Value of the fuel.
8. The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the solid fuels into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
9. Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
10. Carbon monoxyde.

Clearance to Combustibles

Applies to 84" ceiling installation only.
See user manual for other installation requirements.

 CanadaUnited States
 Single wall pipe Double wall pipeSingle wall pipeDouble wall pipe
Clearance - Back wall14 1/2"6"13"6"
Clearance - Side wall10"10"10"10"
Clearance - Corner12"6"12"6"
Clearance - Base of the unit to ceiling**84"84"84"84"




*The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
**Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
