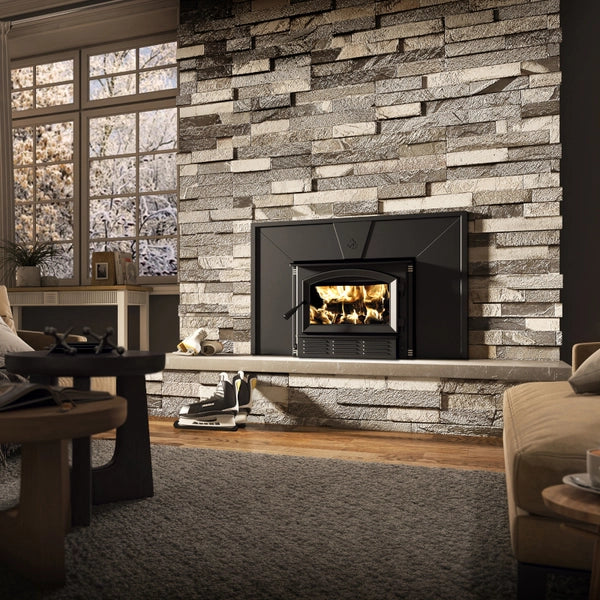

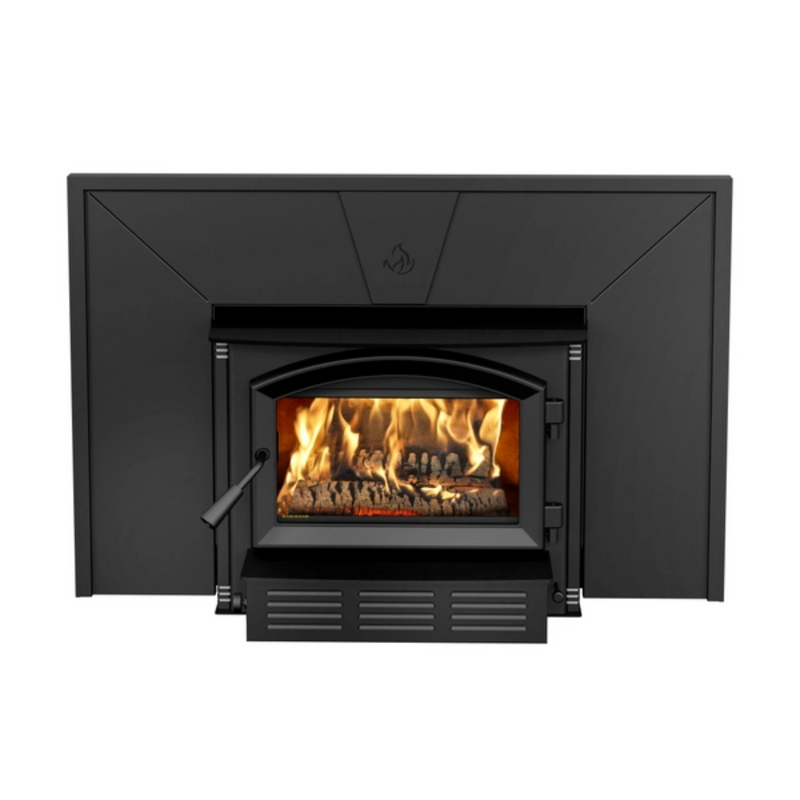

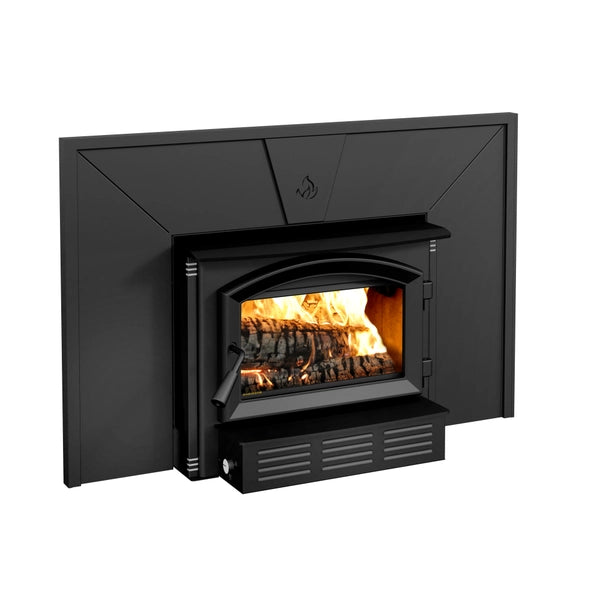

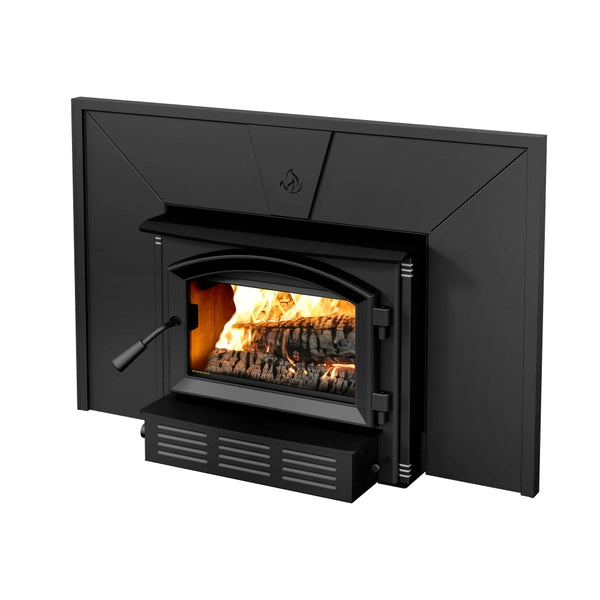

Enerzone Solution 1.7-I Wood Insert Bundle

SKU EB00057-AC01285-OA10128
Original price $3,029.00 - Original price $3,089.00
Original price
$3,089.00
$3,029.00 - $3,089.00
Current price $3,089.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

The Enerzone Solution 1.7-I Wood Insert Bundle offers a cutting-edge solution for home heating with its innovative non-catalytic design. Featuring a high-efficiency second combustion system, this insert achieves an impressive 2.4 g/h particulate emission rate. Crafted with first-class materials, it boasts an elegantly arched cast iron door with silver accents, high-density refractory bricks, and a standard silent fan. These features not only ensure easy operation but also provide unmatched comfort, durability, and reliability, making it a superior choice for those seeking an efficient and stylish heating solution.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area500 - 1,800 ft²
Overall firebox volume1.86 ft³
EPA loading volume1.44 ft³
Maximum burn time8 h
Maximum heat output (dry cordwood)65,000 BTU/h (19 kW)
Minimum overall heat output rate9,800 BTU/h (2.87 kW)
Mobile home approvedNo
Premium quality blower included (CFM)144 CFM included
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance-center of the flue outlet to back unit5 3/4"
Distance-center of the flue outlet to side unit12 3/4"
Recommended chimney diameter6"
Type of chimneyLiner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height12'
Overall dimension (Width)27 1/8"
Overall dimension (Height)21 1/4"
Overall dimension (Depth)22 3/8"
Door typeSingle, glass with cast iron frame
Door opening size (Width)17 1/4"
Door opening size (Height)8 3/4"
Glass typeCeramic glass
Glass surface (W x H)15 7/8" x 9 7/8"
Maximum overall heat output rate52,200 BTU/h (15.3 kW)
Average overall efficiency (HHV)68 %
Average overall efficiency (LHV)73 %
Optimum efficiency76 %
Optimum heat transfer efficiency75 %
Average particulate emission rate2.4 g/h
Average CO103 g/h
Steel thickness (body)3/16"
Steel thickness (top)3/8"
Firebox size (Width)19 5/8"
Firebox size (Height)11 7/8"
Firebox size (Depth)13 1/2"
Maximum log length18"
Log positioningLoading over width
Firebox lined with refractory bricksYes
Baffle typeC-Cast or equivalent
Minimum fireplace opening (Width)27 1/2"
Minimum fireplace opening (Height)21 1/2"
Minimum fireplace opening (Depth)12 3/4"
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S628
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight385 lb (175 kg)







Clearances
Combustible side wall to unit16"16"
Combustible side mantle to unit9"9"
Combustible top mantle to unit27"27"
Top of the unit to a 12" combustible mantle shelf27"27"
Base of the unit to ceiling**84"84"
