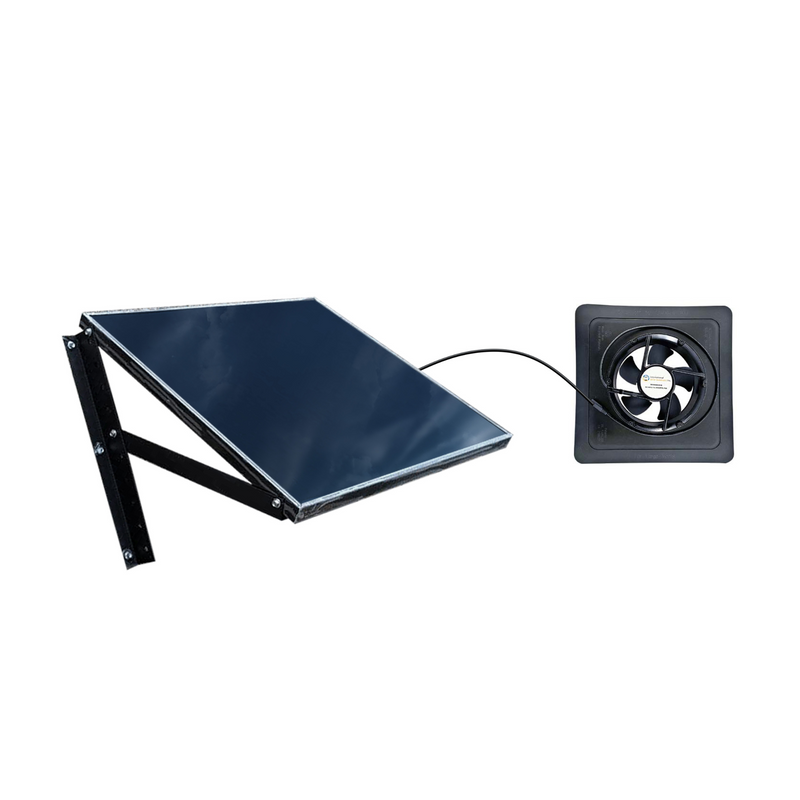

iSolar 50W108-FLEX Modular Solar Attic Fan - Retrofit – High-Efficiency Solar-Powered Ventilation

SKU 50W108-FLEX
by iSolar
Original price $459.00 - Original price $459.00
Original price
$459.00
$459.00 - $459.00
Current price $459.00
Availability:
in stock

The iSolar 50W108-FLEX Modular Solar Attic Fan is a high-efficiency solar-powered ventilation solution designed for both roof and wall mounting. This innovative fan easily retrofits into existing vent openings, making installation flexible and convenient. Utilizing solar energy, it operates a top-grade brushless motor for powerful yet quiet ventilation, helping to remove moisture to prevent the buildup of mold, mildew, and harmful gases while extending the lifespan of roofing materials. With the ability to reduce air-conditioner wear, balance indoor temperatures, and prevent ice-damming in winter, this fan provides an energy-efficient way to maintain a healthier and more comfortable environment.

Benefits

  • IP68 Waterproof Brushless Motor
  • Removes moisture to prevent the buildup of harmful mold, mildew & gases
  • Extends lifespan of roofing materials
  • Reduces wear on air-conditioners
  • Balances indoor temperature
  • Prevents ice-damming in winter (without thermal auto shut-off)
  • Reduces electricity bills

Note: A minimum opening of 9 inches is required.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Weight4.03 kg (8.9 lbs.)
Attic Area Vented (Sq. Ft.)0-500
Air Movement< 700 CFM *
Total CFM MAX615
ApplicationsRoof/Attic, Sheds, Garages & Outbuildings
Cable1m (39 in.) length cable with SAE plug
Fan Blades(5) Composite plastic high-velocity fan blades
Fan Dimensions20x20x6 cm (7.8x7.8x2.3 in.)
Fan Housing

One-piece fan and mounting plate

(16” x 16”)

MotorBrushless DC
Motor Intrusion ProtectionIP68 (Waterproof and dustproof)
Motor Power≤ 50W
Motor Quietness< 67 dB
Motor Size7.6 cm (3 in.) diameter
Motor Speed42300 RPM
Motor Voltage2.7A~24V
Packaging49x58x2.5 cm (19.2x22.8x1 in.)
Power50W Solar panel
Solar PanelMonocrystalline, adjustable/detachable
Solar Panel Size35×42×2.5 cm (13.7×16.5×1 in.)
Fan Quantity1
Total CFM MAX615 CFM
Installation AreaAttic Gable, Roof/AtticRoof / Gable Attic, Crawlspace

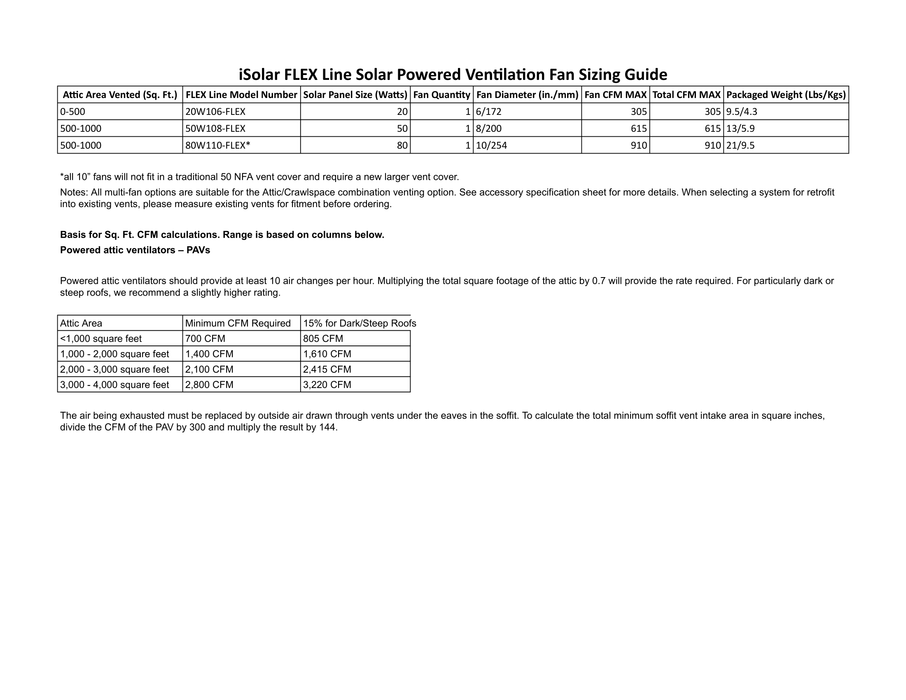

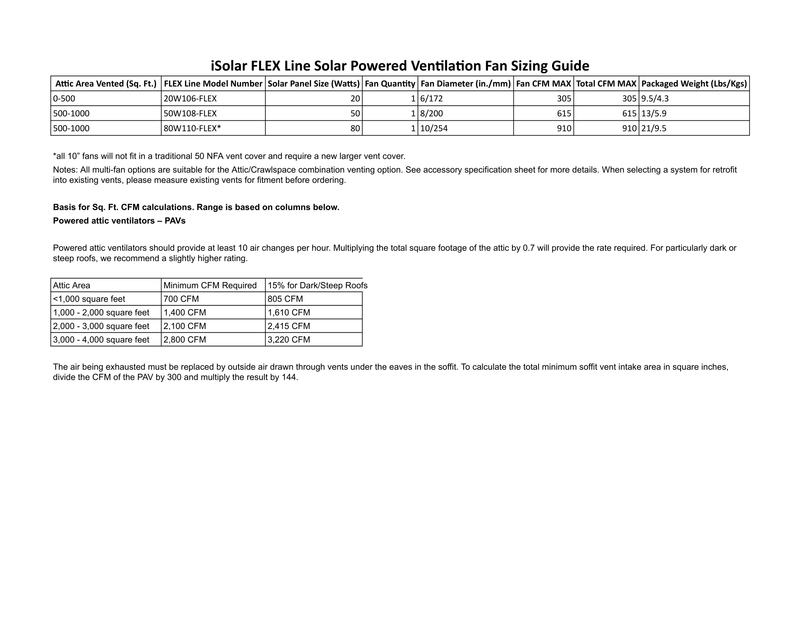

Sizing Guide

Attic Area Vented (Sq. Ft.)FLEX Line Model NumberSolar Panel Size (Watts)Fan QuantityFan Diameter (in./mm)Fan CFM MAXTotal CFM MAXPackaged Weight (Lbs/Kgs)
0-50020W106-FLEX2016/1723053059.5/4.3
500-100050W108-FLEX5018/20061561513/5.9
500-100080W110-FLEX*80110/25491091021/9.5



*all 10” fans will not fit in a traditional 50 NFA vent cover and require a new larger vent cover.


Notes: All multi-fan options are suitable for the Attic/Crawlspace combination venting option. See accessory specification sheet for more details. When selecting a system for retrofit into existing vents, please measure existing vents for fitment before ordering.

Basis for Sq. Ft. CFM calculations. Range is based on columns below.
Powered attic ventilators – PAVs

Powered attic ventilators should provide at least 10 air changes per hour. Multiplying the total square footage of the attic by 0.7 will provide the rate required. For particularly dark or steep roofs, we recommend a slightly higher rating.



Attic AreaMinimum CFM Required15% for Dark/Steep Roofs
<1,000 square feet700 CFM805 CFM
1,000 - 2,000 square feet1,400 CFM1,610 CFM
2,000 - 3,000 square feet2,100 CFM2,415 CFM
3,000 - 4,000 square feet2,800 CFM3,220 CFM



The air being exhausted must be replaced by outside air drawn through vents under the eaves in the soffit. To calculate the total minimum soffit vent intake area in square inches, divide the CFM of the PAV by 300 and multiply the result by 144.

Documentation
