Lunos e2™ Ductless HRV System - Standard

2 reviews
SKU
by Lunos
Original price $1,585.00 - Original price $2,307.50
Original price
$1,585.00
$1,585.00 - $2,307.50
Current price $1,585.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

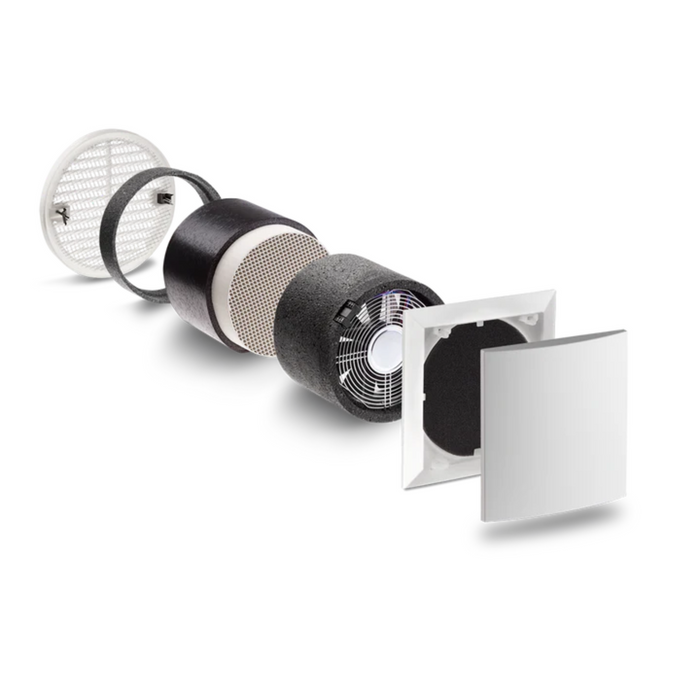

The LUNOS e2™ Ductless HRV System Standard is a cutting-edge ductless solution for your home's ventilation needs. This innovative system redefines indoor air quality with its demand-flow, through-wall design and ceramic regenerative heat exchanger. Installed in pairs directly through your exterior wall, the LUNOS e2™ ensures a continuous flow of fresh, filtered air without the hassle of ductwork. Boasting an impressive 90.6% degree of efficiency and offering adjustable flow rates of 18, 31, and 38 m³/h, this system not only maintains a healthy indoor environment but also does so with incredible energy efficiency, consuming just 1.4, 2.8, or 3.3 watts per unit. With a low specific power consumption of 0.09 W/m³/h, a 12V DC power supply, and approximately 20-30% humidity recovery, the LUNOS e2™ stands as the quiet, compact, and eco-conscious choice for superior home ventilation. Experience the future of fresh air with the LUNOS e2™ – where performance meets sustainability in a sleek 243 mm package, effortlessly fitting a 162 mm core hole.

  • Permission Z-51.3-242
  • RoHS and WEEE compliant
  • EnEV and DIN 1946-6 compliant
  • Tested by DIN 308 and DIBt standard
  • Can be used in low-energy buildings

    Delivery time / Order Processing & Shipping Times

    Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

    Product Specifications

    What's Included
    • 2 Lunos Ventilation Fans with Heat Recovery;
    • 1 Lunos Universal Controller 5/UNI (Smart Comfort Control)
    • 2 Interior Grills
    • 2 Exterior Grills (optional aluminum grills available)
    • 2 MERV 3 filters- (Pollen Filter -MERV 9 optional)
    • 2 19.5” Polymer Installation Sleeves
    • Wiring and Installation Instructions
    • Minimum Wall Depth required: 9.8"
    Degree of Efficiency90.6%
    Flow Rate18/ 31/ 38 m³/h
    Power Consumption Per Unit1,4/ 2,8/ 3,3 W
    Specific Power Consumption0,09 W/m³/h
    Supply Voltage/Frequency12V DC
    Humidity RecoveryApprox. 20-30%
    Measuring Surface Sound Pressure Level16,5/ 19,5/ 26 dB
    Standard Sound Pressure Difference Dn,W,open42 dB
    Length243 mm
    Ø core hole162 mm
    Diameter Unit5 ⅞” (150 mm)
    Exterior Diameter Tube6 5/16” (160 mm)
    Minimum Wall Thickness

    Short : 8” (200 mm)

    Standard : 12” (300 mm)

    Installation Tube (can be cut)

    Short: 8” to 12 ½” (200 mm to 320 mm)

    Standard: 12” to 19¾” (300 mm to 500 mm)

    Extra long option: 19¾” to 27 ½” (500 to 700 mm)

    Fan Length

    Standard: 9 ¾” (248 mm)

    Short: 6 ¾” (171 mm)

    Inside Cover7 1 /16” x 7 1 /16” (180 mm x 180 mm)
    Outside Grill Diameter 7 1 /16” (180 mm)
    Compliance, Standards, and Testing
    • Permission Z-51.3-242
    • RoHS and WEEE compliant
    • EnEV and DIN 1946-6 compliant
    • Tested by DIN 308 and DIBt standard
    • Can be used in low-energy buildings
