MRCOOL DIY Multi Zone Series 2 zone 18000-BTU Ductless Mini Split Air Conditioner Heat Pump Included with 230-Volt - DIYM218HPW03D00

SKU DIYM218HPW03D00
Original price $4,001.17 - Original price $4,001.17
Original price
$4,001.17
$4,001.17 - $4,001.17
Current price $4,001.17
Availability:
in stock

MRCOOL DIY Multi Zone Series 2 Zone 18,000-BTU Ductless Mini Split Air Conditioner Heat Pump Included with 230-Volt - DIYM218HPW03D00 delivers year-round comfort with an innovative DIY-friendly installation design that eliminates the need for specialized HVAC tools or professional installation. Ideal for cooling and heating multiple rooms, this 18,000 BTU multi-zone system combines energy-efficient performance with smart climate control technology to maintain personalized comfort throughout your home. Featuring advanced inverter technology, quiet operation, and reliable heating and cooling capabilities, the MRCOOL DIY Multi Zone Series offers a convenient and cost-effective solution for homeowners seeking flexible zoned comfort.

Features:

  • 18,000 BTU multi-zone ductless mini split system
  • Provides both heating and cooling functionality
  • DIY installation design with pre-charged line sets
  • Supports comfort control in two separate zones
  • Energy-efficient inverter technology
  • Quiet indoor and outdoor operation
  • 230-volt electrical configuration
  • Wireless remote control compatibility
  • Ideal for homes, additions, garages, offices, and other multi-room applications
  • Reliable year-round climate control solution

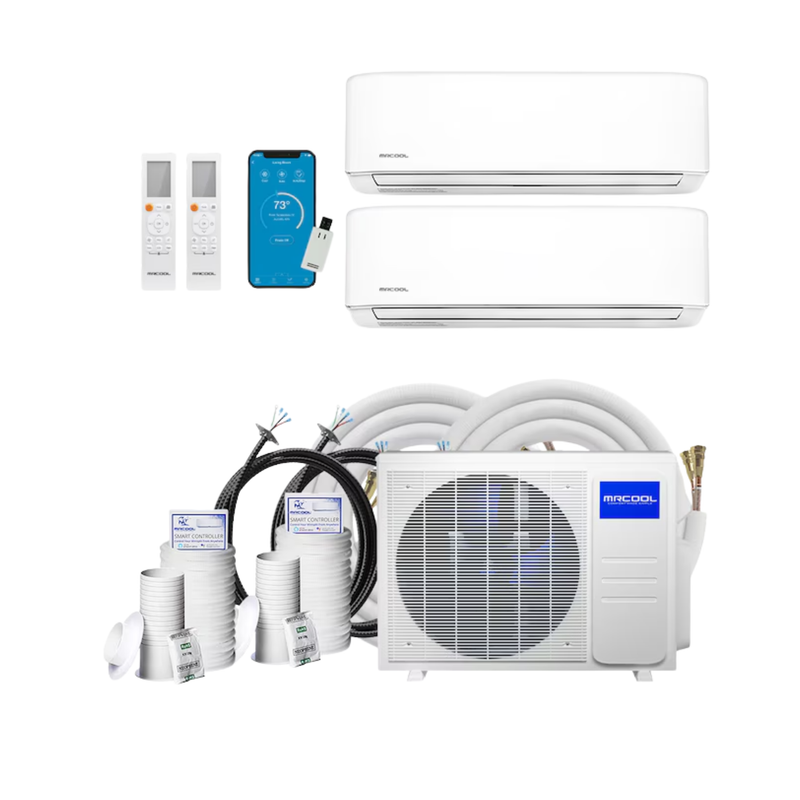

Included in Bundle:

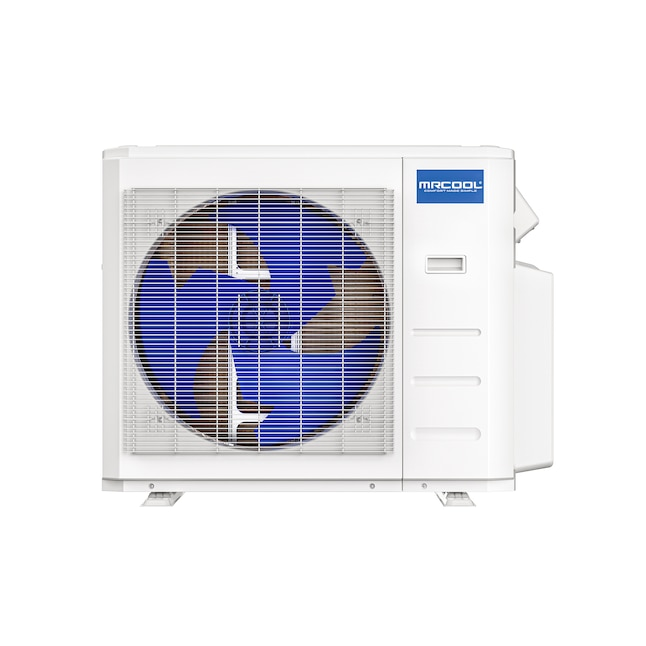

  • 1x DIY 18k 5th Gen Multi-Zone 3 Condenser - 230v (DIY-MULTI3-18HP230D-O)

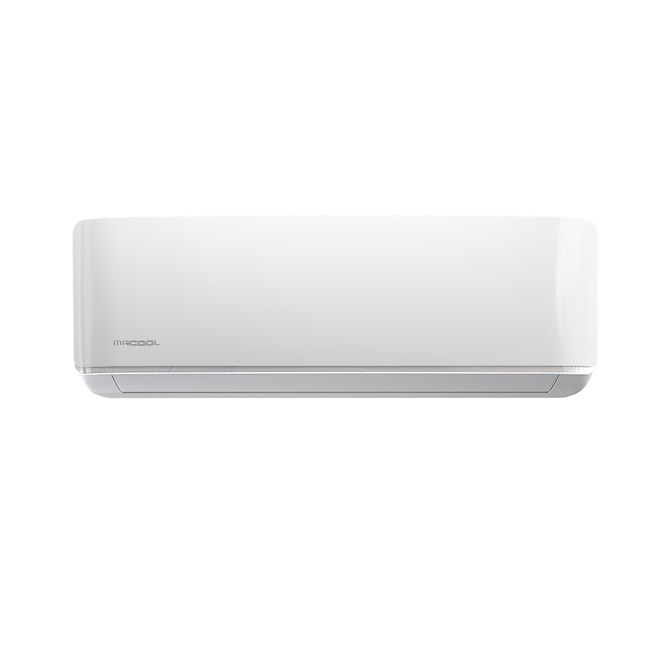

  • 2x DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V (DIY-09-HP-WMAH-230D25-O)

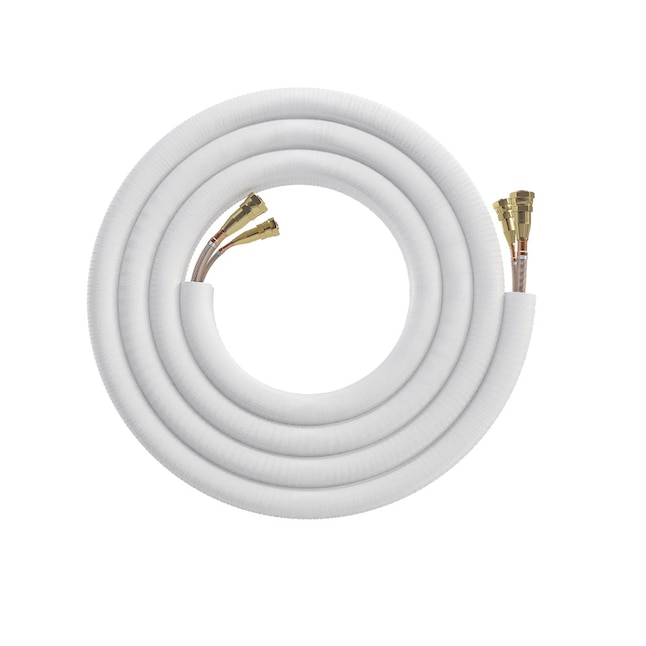

  • 2x DIY 5th Generation, 16ft 1/4 x 3/8 Lineset for DIY 9K & 12K Indoor - R454B (DIY16-1438-O)

LEARN MORE WITH AI

Have a question about this product?

chat-bubble
Send message
Was this helpful?
Yes
No
Thanks for the feedback!

Specifications

SpecificationValue
Model NumberDIY-MULTI3-18HP230D-O
SeriesMRCOOL DIY 5th Generation Multi-Zone
System TypeDuctless Mini Split Heat Pump
Maximum Zones Supported3
Cooling Capacity18,000 BTU/h
Heating Capacity18,000 BTU/h
SEER223.9
EER213
HSPF2-410
HSPF2-57.8
Maximum Coverage AreaUp to 750 sq. ft.
Outdoor Sound Level60 dB(A)
Power Supply208-230V, 60Hz, 1 Phase
Minimum Circuit Ampacity16.0 A
Maximum Fuse Size20 A
Refrigerant TypeR-454B
Refrigerant Charge61.73 oz
Liquid Line Size1/4 in. (6.35 mm)
Gas Line Size3/8 in. (9.52 mm)
Outdoor Unit Dimensions35.04 x 13.46 x 26.50 in.
Outdoor Unit Dimensions (Metric)890 x 342 x 673 mm
Shipping Dimensions40.55 x 17.24 x 29.53 in.
Shipping Dimensions (Metric)1030 x 438 x 750 mm
Net Weight101.63 lbs (46.09 kg)
Gross Weight109.57 lbs (49.70 kg)
Energy Star CertifiedYes
Energy Star Cold Climate CertifiedYes
Federal Tax Credit EligibleYes
NEEP ListedYes
CEE Tier 1 NorthYes
CEE Tier 2 NorthYes
CEE Tier 1 SouthYes
CEE Tier 2 SouthYes
MASS Save EligibleYes
Smartphone App ControlYes
Amazon Alexa CompatibleYes
Google Assistant CompatibleYes
DIY Quick Connect Line SetYes
DIYPro Armored Cable IncludedYes
DC Inverter TechnologyYes
Gold Fin Corrosion ProtectionYes
Leakage DetectionYes
Follow Me FunctionYes
Auto RestartYes
Low Ambient CoolingYes
Warranty7-Year Compressor / 5-Year Parts
