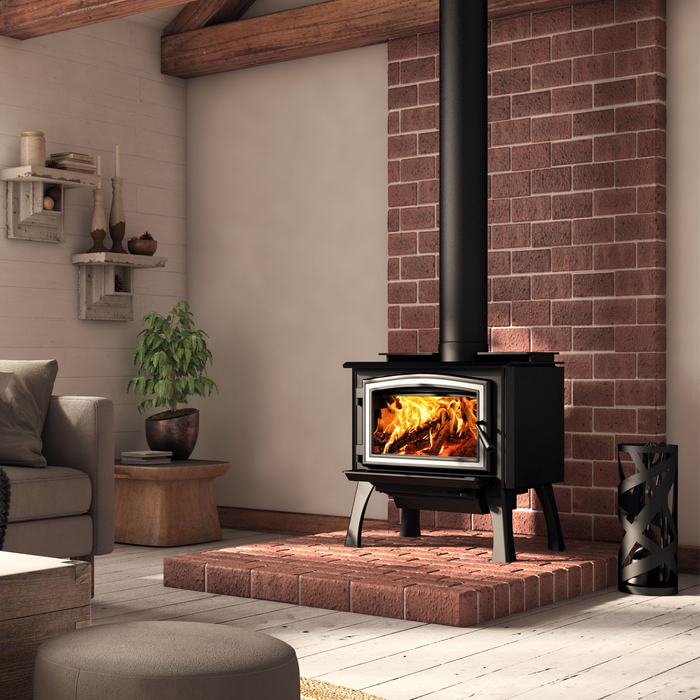

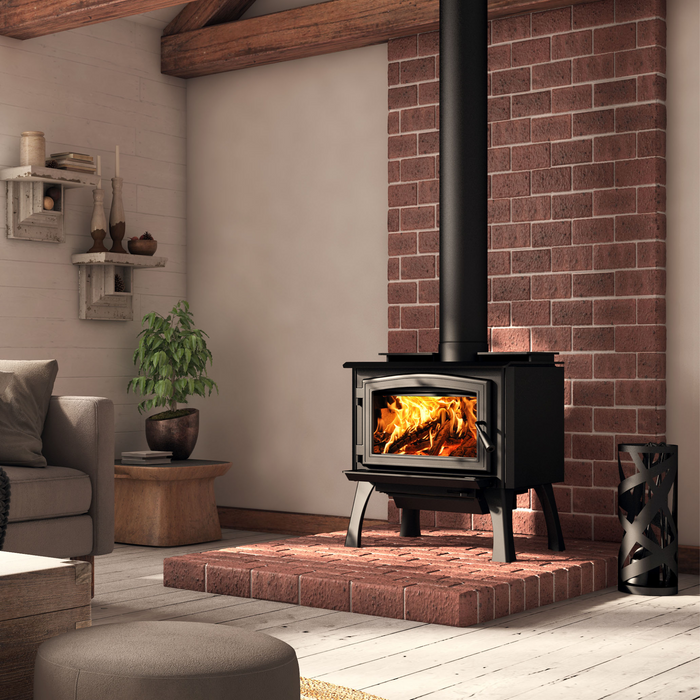

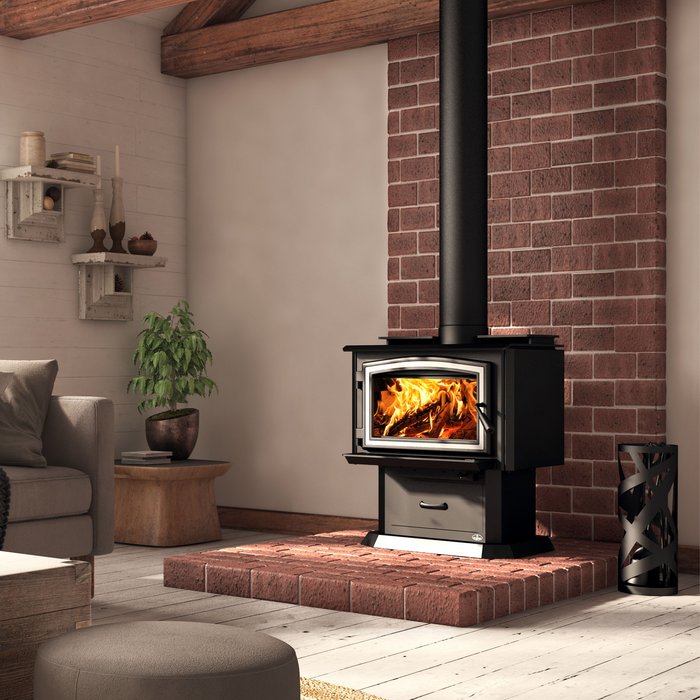

Osburn 1700 Wood Burning Stove

SKU OB01700-OA10244-OA10249-Bundle
by Osburn
Original price $2,599.00 - Original price $3,299.00
Original price
$2,699.00
$2,599.00 - $3,299.00
Current price $2,699.00
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock
Availability:
in stock

The Osburn 1700 Wood Burning Stove combines robustness with elegance, making it a perfect choice for smaller spaces. This stove features high-density bricks, a stainless steel heat shield, and a cast iron door, ensuring durability and efficient heat distribution. A built-in ash pan and a top heat deflector that channels heat to the front add convenience and performance, while side panels reduce clearances for safer installation. With customizable options like refined door overlays and new leg designs, the Osburn 1700 not only meets but exceeds air quality regulations, offering emissions as low as 1.26 g/h for an eco-friendly and efficient heating solution.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area500 - 1,800 ft²
Overall firebox volume1.86 ft³
EPA loading volume1.44 ft³
Maximum burn time6 h
Maximum heat output - dry cordwood65,000 BTU/h (19 kW)
Minimum overall heat output rate15,650 BTU/h (4.6 kW)
Alcove installation approvedYes
Mobile home approvedYes, with fresh air intake
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Overall dimension (Width)24 7/8"
Overall dimension (Height)30 3/8"
Overall dimension (Depth)23 1/4"
Premium quality blower included (CFM)Optional
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance - center of the flue outlet to back unit6 5/8"
Distance - center of the flue outlet to side unit12 1/2"
Recommended chimney diameter6"
Type of chimneyCAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height12'
Door typeSingle, glass with cast iron frame
Door opening size (Width)17 1/4"
Door opening size (Height)8 3/4"
Maximum overall heat output rate23,300 BTU/h (6.83 kW)
Average overall efficiency - dry cordwood (HHV)70 %
Average overall efficiency - dry cordwood (LHV)75 %
Optimum efficiency78 %
Optimum heat transfer efficiency74 %
Average particulate emission rate1.26 g/h
Average CO58 g/h
Glass typeCeramic glass
Glass surface - W x H15 3/4" x 9 3/8"
Steel thickness - body3/16"
Steel thickness - top5/16"
Firebox size (Width)19 5/8"
Firebox size (Height)11 7/8"
Firebox size (Depth)13 1/2"
Log positioningLoading over width
Maximum log length18"
Firebox lined with refractory bricksYes
Baffle typeC-Cast or equivalent
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S627
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight336 lb (153 kg)







ClearancesCanadaUnited States
 Single Wall PipeDouble Wall PipeSingle Wall PipeDouble Wall Pipe
Clearance - Back wall14 1/2"6"12"6"
Clearance - Side wall10"12"12"12"
Clearance - Corner12"6"11"6"
Clearance - Base of the unit to ceiling**84"84"84"84"

Documentation
