Osburn 3500 Wood Burning Stove With Blower

SKU OB03500-OA10163
by Osburn
Original price $3,999.00 - Original price $4,249.00
Original price
$3,999.00
$3,999.00 - $4,249.00
Current price $3,999.00
Availability:
in stock
Availability:
in stock

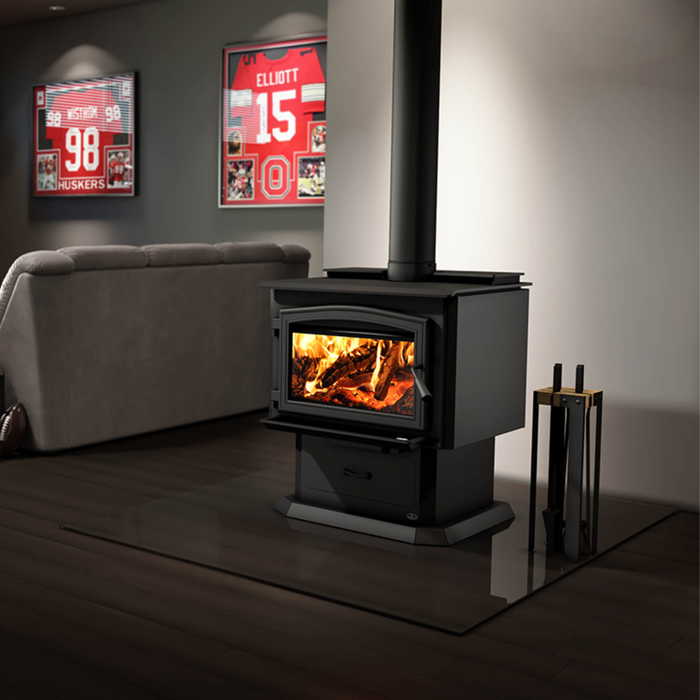

The Osburn 3500 Wood Burning Stove With Blower is specifically designed to endure the rigor of winter, making it an essential addition to any spacious home, especially those with a recommended heating area of 1,000 to 2,700 square feet. Despite emitting less than 1.6 g/h, this wood stove utilizes user-friendly, non-catalytic technology, significantly reducing fuel consumption. The stove features a large firebox capable of holding up to 50 lb of cordwood, along with a built-in blower, thermodisc, and airmate, ensuring optimal heat distribution and unparalleled comfort.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area1,000 - 2,700 ft²
Overall firebox volume3.5 ft³
EPA loading volume2.88 ft³
Maximum burn time10 h
Maximum heat output (dry cordwood)110,000 BTU/h (32.2 kW)
Minimum overall heat output rate17,200 BTU/h (5.0 kW)
Alcove installation approvedYes
Mobile home approvedYes, with fresh air intake
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Overall dimension (Width)28 7/8"
Overall dimension (Height)34 3/4"
Overall dimension (Depth)33 1/2"
Premium quality blower included (CFM)130 CFM included
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance-center of the flue outlet to back unit8 1/8"
Distance-center of the flue outlet to side unit14 3/8"
Recommended chimney diameter6"
Type of chimneyCAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height12'
Door typeSingle, glass with cast iron frame
Door opening size (Width)19"
Door opening size (Height)9 7/8"
Maximum overall heat output rate57,800 BTU/h (16.9 kW)
Average overall efficiency (dry cordwood) (HHV)71%
Average overall efficiency (dry cordwood) (LHV)76%
Optimum efficiency77%
Optimum heat transfer efficiency75%
Average particulate emission rate1.6 g/h
Average CO73 g/h
Glass typeCeramic glass
Glass surface - W x H18 7/8" x 11 3/4"
Steel thickness (body)5/16"
Steel thickness (top)3/16"
Firebox size (Width)22 7/8"
Firebox size (Height)12 7/8"
Firebox size (Depth)20 1/8"
Log positioningLoading over width or depth
Maximum log length22"
Firebox lined with refractory bricksYes
Baffle typeC-Cast or equivalent
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S627
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight549 lb (249 kg)





ClearancesCanadaUnited States
 Single Wall PipeDouble Wall PipeSingle Wall PipeDouble Wall Pipe
Clearance - Back wall13 1/4"6"13"6"
Clearance - Side wall14"14"14"14"
Clearance - Corner7 1/4"7"7 1/4"7"
Clearance - Base of the unit to ceiling**84"84"84"84"
