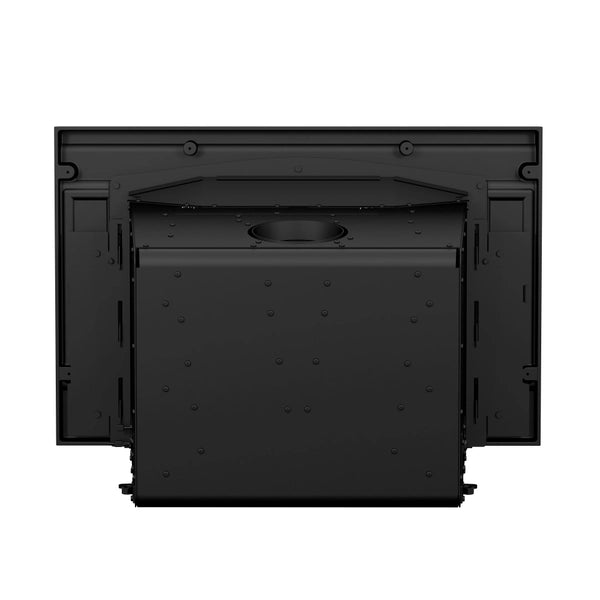

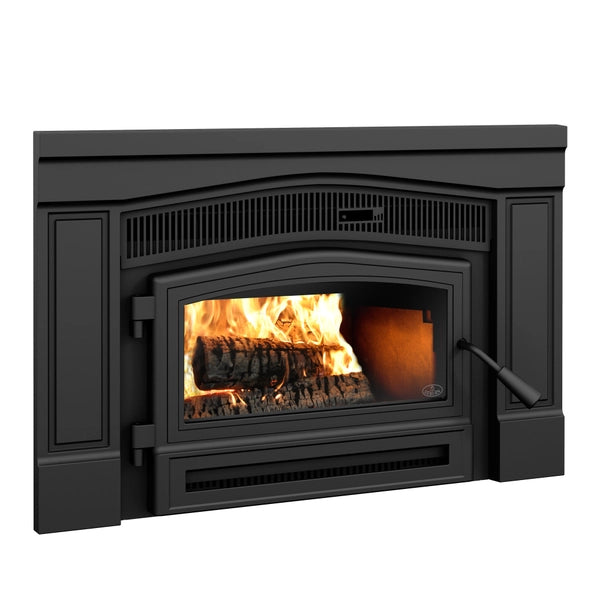

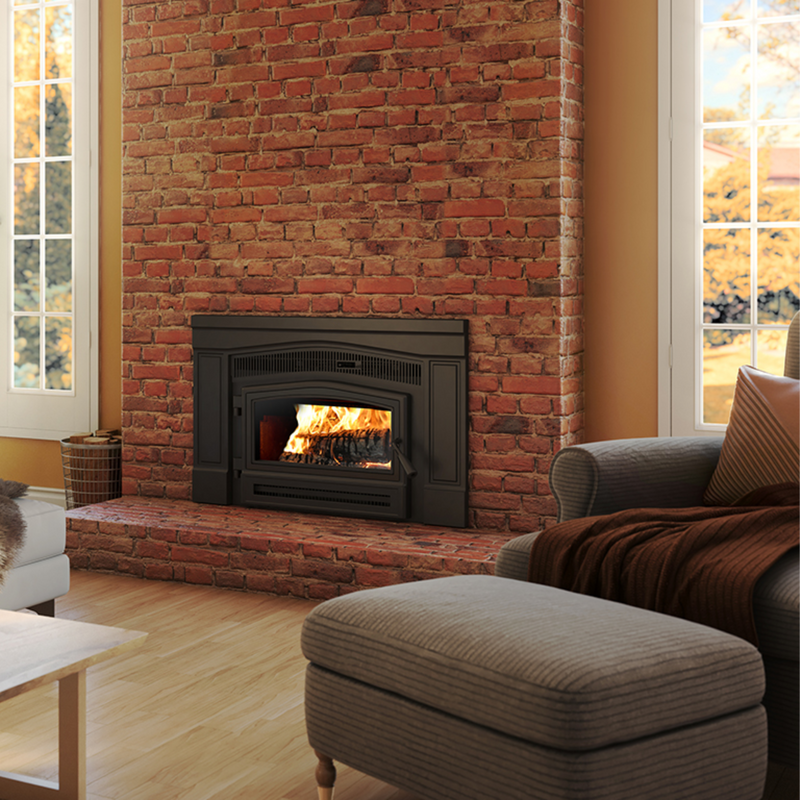

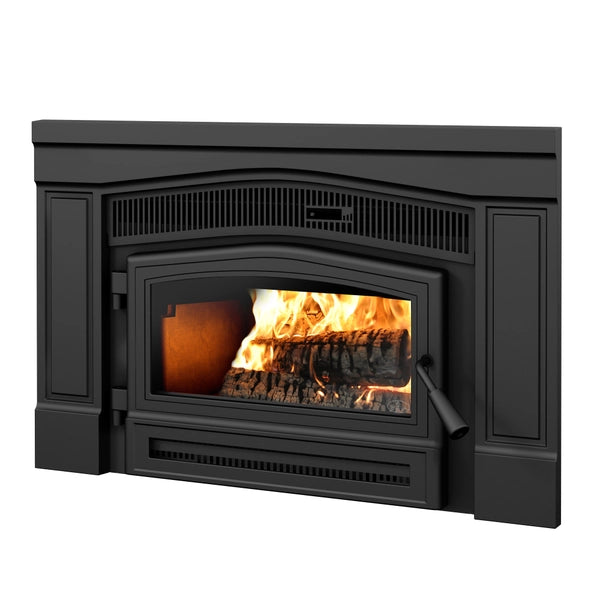

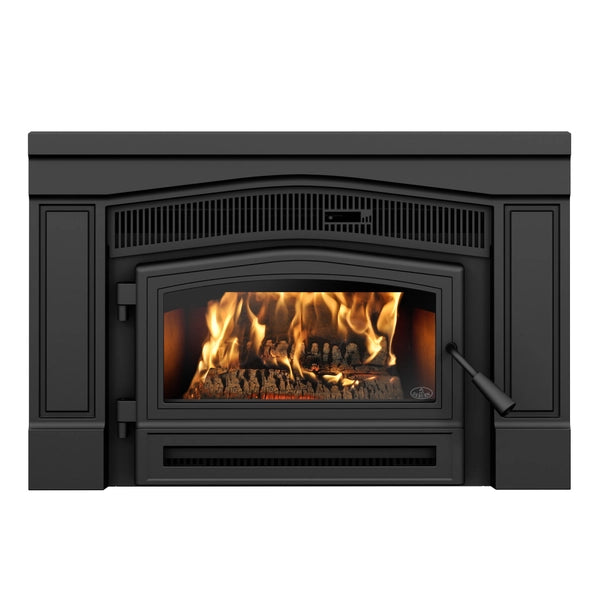

Osburn Matrix 1900 Wood Burning Insert

SKU OB01900-OA10041
by Osburn
Original price $3,319.00 - Original price $3,469.00
Original price
$3,319.00
$3,319.00 - $3,469.00
Current price $3,319.00
Availability:
in stock
Availability:
in stock

The Osburn Matrix 1900 Wood Burning Insert offers exceptional comfort and style for homes ranging from 250 to 1,200 square feet. Featuring a stunning cast-iron faceplate with intricate details like a patterned upper louver and elegant columns, this wood-burning insert enhances the aesthetic appeal of any room. The large glass door provides a panoramic view of the flames, creating a cozy and inviting atmosphere. Designed with practicality in mind, the Matrix 1900's compact size, tapered top, and sides ensure easy installation in smaller hearths, while its deep combustion chamber reduces the need for frequent cleaning.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area250 - 1,200 ft²
Overall firebox volume1.1 ft³
EPA loading volume1.03 ft³
Maximum burn time7 h
Maximum heat output (dry cordwood)45,000 BTU/h (13.19 kW)
Minimum overall heat output rate8,471 BTU/h (2.48 kW)
Mobile home approvedNo
Premium quality blower included (CFM)90 CFM included
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance - center of the flue outlet to back unit5 1/8"
Distance - center of the flue outlet to side unit10 5/8"
Recommended chimney diameter6"
Type of chimneyLiner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height12'
Overall dimensions (W x H x D)36" x 23 7/8" x 21"
Door typeSingle, glass with cast iron frame
Door opening size (W x H)18 1/4" x 7 7/8"
Glass typeCeramic glass
Glass surface (W x H)18" x 8 1/8"
Steel thickness (body & top)3/16"
Maximum overall heat output rate31,700 BTU/h (9.29 kW)
Average overall efficiency - dry cordwood (HHV)75%
Average overall efficiency - dry cordwood (LHV)80%
Optimum efficiency82%
Optimum heat transfer efficiency78%
Average particulate emission rate1.5 g/h
Average CO34 g/h
Firebox size (W x H x D)16 3/4" x 8 7/8" x 12 3/8"
Maximum log length17"
Log positioningLoading over width
Moulded refractory panelsYes
Firebox lined with refractory bricksNo
Baffle typeC-Cast or equivalent
Minimum fireplace opening (W x H x D)25" x 19" x 15 1/2"
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S628
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight332 lb (151 kg)
Minimum fireplace opening (H at the back)17 1/4"
Minimum fireplace opening (W at the back)21 1/2"





ClearancesCanadaUnited States
Combustible side wall to unit16"16"
Combustible side mantle to unit1"1"
Combustible top mantle to unit1"1"
Base of the unit to ceiling**72"72"
