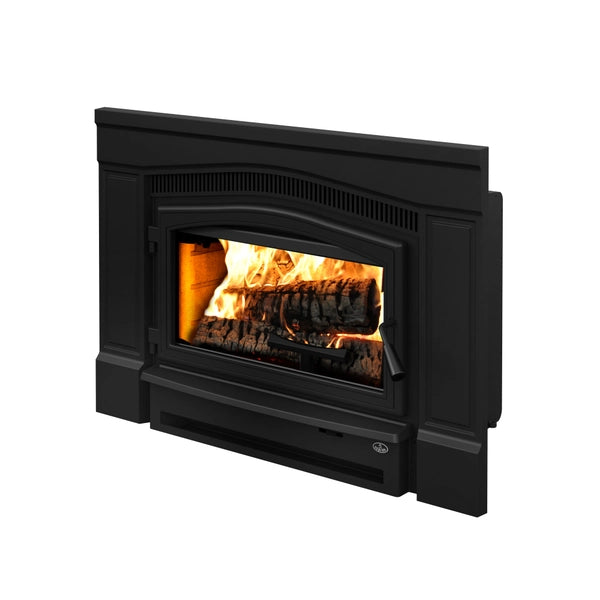

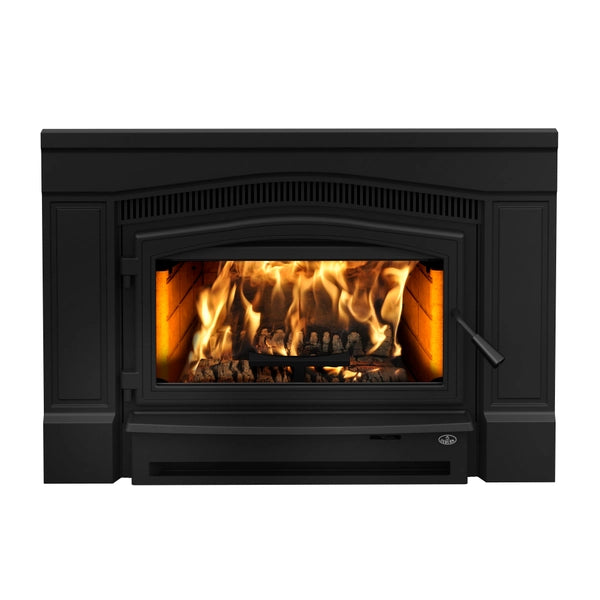

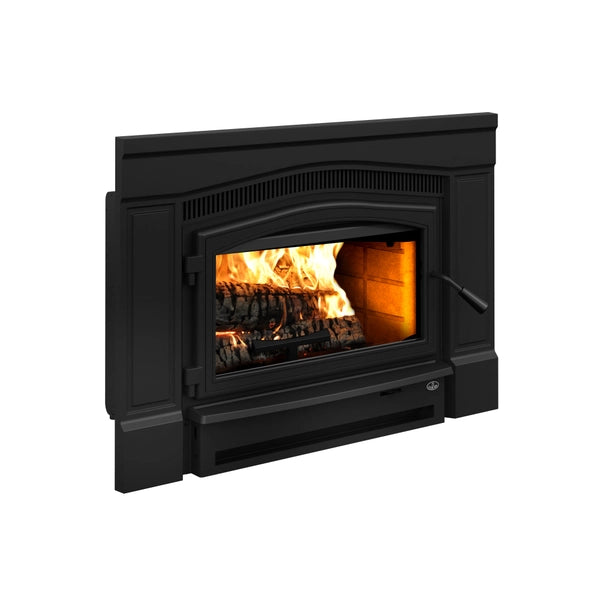

Osburn Matrix 2700 Wood Insert Bundle

SKU OB02700-OA10253
by Osburn
Original price $4,899.00 - Original price $5,149.00
Original price
$4,899.00
$4,899.00 - $5,149.00
Current price $4,899.00
Availability:
in stock
Availability:
in stock

The Osburn Matrix 2700 Wood Insert Bundle is a masterful blend of traditional aesthetics and modern technology, designed to enhance your living space while efficiently heating areas ranging from 750 to 2,200 square feet. Inspired by nature, this wood insert features a large viewing area that allows you to enjoy the mesmerizing flames. Eco-conscious users will appreciate its efficient, non-catalytic combustion system, and customizable options, including a choice of black or brushed silver-plated door overlays and an optional fire screen enhance its classic beauty. The unit also comes equipped with a durable cast iron faceplate and a heat-activated blower for optimal performance.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area750 - 2,200 ft²
Overall firebox volume2.5 ft³
EPA loading volume1.94 ft³
Maximum burn time8 h
Maximum heat output - dry cordwood80,000 BTU/h (23.4 kW)
Minimum overall heat output rate12,700 BTU/h (3.72 kW)
Mobile home approvedNo
Premium quality blower included176 CFM included
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance - center of the flue outlet to back unit6 5/8"
Distance - center of the flue outlet to side unit15 3/8"
Recommended chimney diameter6"
Type of chimneyLiner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height12'
Overall dimension (Width)43 5/8"
Overall dimension (Height)30 1/8"
Overall dimension (Depth)27 1/4"
Door typeSingle, glass with cast iron frame
Door opening size (Width)25 3/8"
Door opening size (Height)10 1/2"
Glass typeCeramic glass
Glass surface - W x H24 3/8" x 12 5/8"
Maximum overall heat output rate60,700 BTU/h (17.79 kW)
Average overall efficiency - dry cordwood (HHV)64 %
Average overall efficiency - dry cordwood (LHV)68 %
Optimum efficiency70 %
Optimum heat transfer efficiency68 %
Average particulate emission rate1.2 g/h
Average CO98 g/h
Steel thickness - body3/16"
Steel thickness - top3/16"
Firebox size (Width)22 5/8"
Firebox size (Height)12 3/8"
Firebox size (Depth)12 7/8"
Maximum log length20"
Log positioningLoading over width
Firebox lined with refractory bricksYes
Baffle typeC-Cast or equivalent
Minimum fireplace opening (Width)31 3/4"
Minimum fireplace opening (Height)27 1/8"
Minimum fireplace opening (Depth)22 1/8"
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S628
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight535 lb (243 kg)







Clearances
Combustible side wall to unit19"19"
Combustible side mantle to unit9 1/2"9 1/2"
Combustible top mantle to unit12"12"
Top of the unit to a 12" combustible mantle shelf12"12"
Base of the unit to ceiling**84"84"
