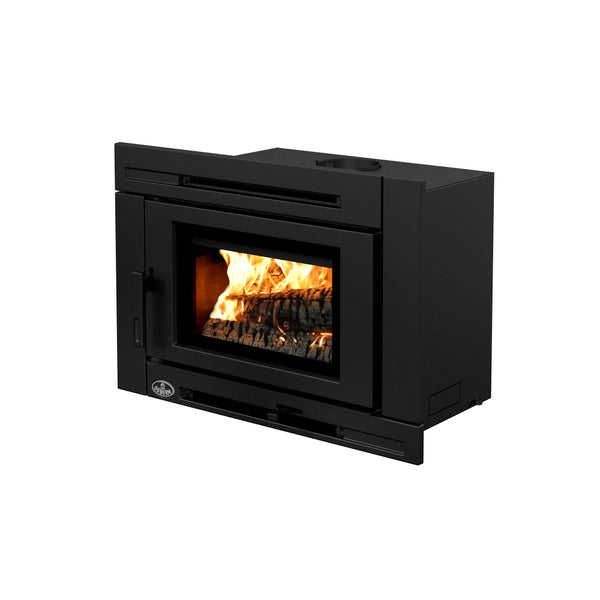

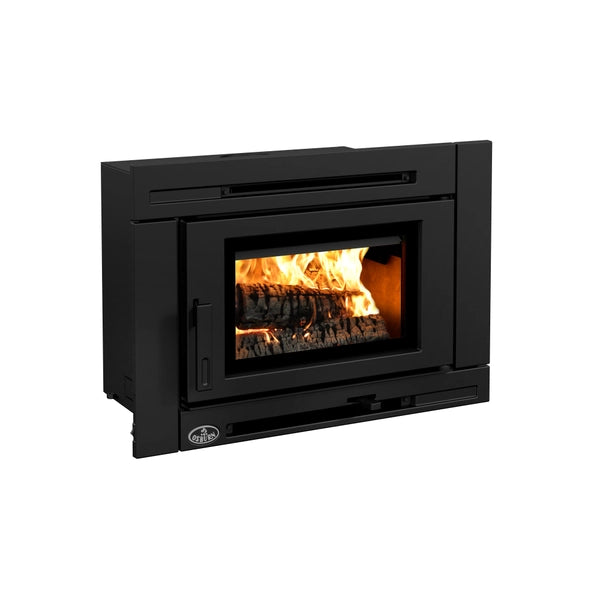

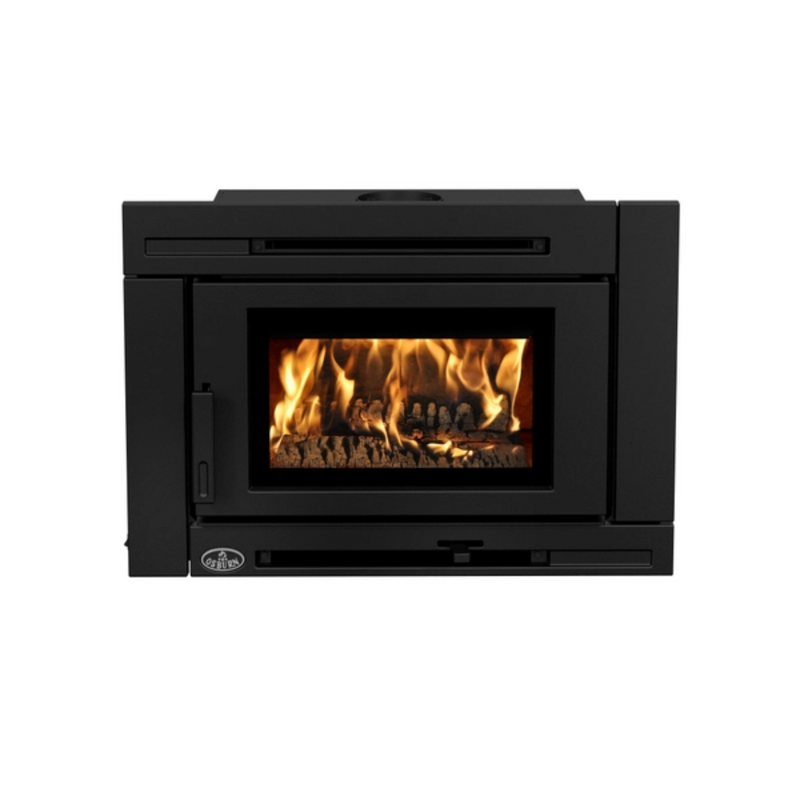

Osburn Matrix-I Wood Insert Bundle

SKU OB02028
by Osburn
Original price $3,999.00 - Original price $3,999.00
Original price
$3,999.00
$3,999.00 - $3,999.00
Current price $3,999.00
Availability:
in stock

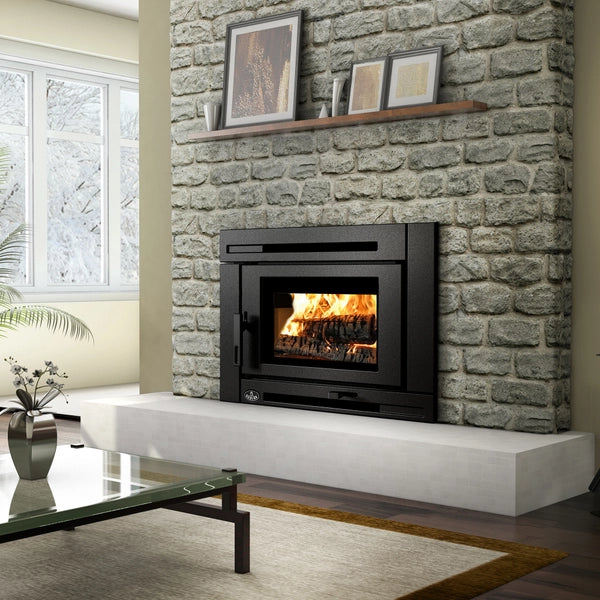

The Osburn Matrix-I Wood Insert Bundle offers an exceptional blend of style and efficiency, designed to meet the latest industry standards. With an impressively low particle emission rate of just 2.3 g/h, this wood insert is both environmentally conscious and highly effective. The updated design retains its distinctive, sleek appearance while incorporating a more functional door mechanism for ease of use. To ensure a perfect fit within your masonry hearth, a set of intermediate trim panels may be necessary. Experience the legendary quality that Osburn is known for with this enhanced wood insert.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Fuel typeDry cordwood (16" recommended)
Recommended heating area500 - 2,100 ft²
Overall firebox volume2.4 ft³
EPA loading volume1.95 ft³
Maximum burn time8 h
Maximum heat output (dry cordwood)75,000 BTU/h (22.0 kW)
Minimum overall heat output rate14,200 BTU/h (4.16 kW)
Mobile home approvedNo
Premium quality blower included90 CFM included
Certified according to applicable standardsBy an accredited laboratory (CAN/USA)
Combustion technologyNon-catalytic
Stainless-steel secondary-air systemYes
Flue outlet diameter6"
Distance - center of the flue outlet to back unit5 5/8"
Distance - center of the flue outlet to side unit13 1/2"
Recommended chimney diameter6"
Type of chimneyLiner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height12'
Overall dimension (Width)36 1/8"
Overall dimension (Height)25 1/8"
Overall dimension (Depth)23 1/8"
Door typeSingle, glass with cast iron frame
Door opening size (Width)17 1/2"
Door opening size (Height)8 3/4"
Glass typeCeramic glass
Glass surface (W x H)19 5/8" x 11 7/8"
Maximum overall heat output rate44,500 BTU/h (13.04 kW)
Average overall efficiency - dry cordwood (HHV)72 %
Average overall efficiency - dry cordwood (LHV)77 %
Optimum efficiency79 %
Optimum heat transfer efficiency76 %
Average particulate emission rate2.3 g/h
Average CO69 g/h
Steel thickness - body3/16"
Steel thickness - top5/16"
Firebox size (Width)21"
Firebox size (Height)11 7/8"
Firebox size (Depth)16 3/4"
Maximum log length20"
Log positioningLoading over width
Firebox lined with refractory bricksYes
Baffle typeC-Cast or equivalent
Minimum fireplace opening (Width)28 7/8"
Minimum fireplace opening (Height)23 3/8"
Minimum fireplace opening (Depth)19 5/8"
High-efficiency certified applianceYes, EPA 2020 approved
Canadian Standard (emissions)CSA B415.1-10
USA Standard (emissions)EPA
Canadian Standard (safety)ULC S628
USA Standard (safety)UL 1482, UL 737
WarrantyLimited lifetime
Shipping weight491 lb (223 kg)







ClearancesCanadaUnited States
Combustible side wall to unit16"16"
Combustible side mantle to unit9"9"
Combustible top mantle to unit27"27"
Top of the unit to a 12" combustible mantle shelf27"27"
Base of the unit to ceiling**84"84"
