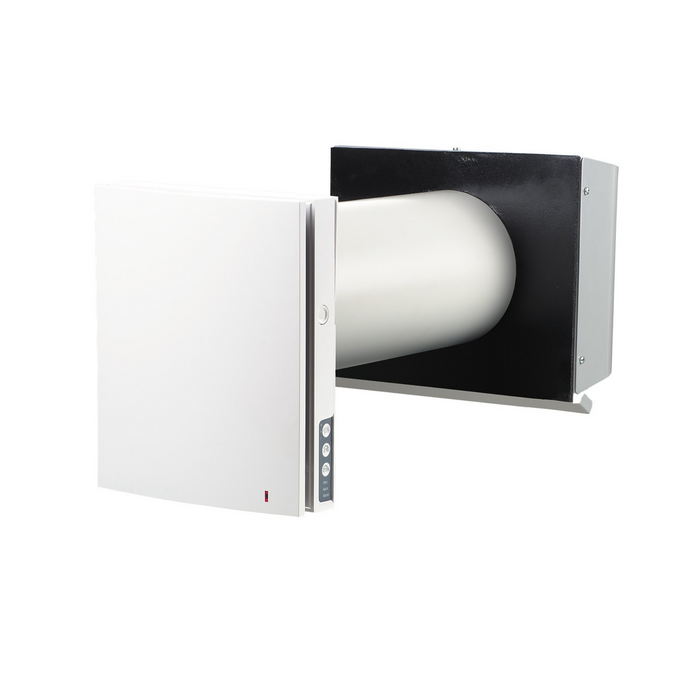

Vents TwinFresh Expert RA1-50-2 Ductless Energy Recovery Ventilator

SKU RA1-50-2-Expert
by Vents
Original price $1,099.00 - Original price $1,099.00
Original price
$1,099.00
$1,099.00 - $1,099.00
Current price $1,099.00
Availability:
in stock

The Vents-US TwinFresh Expert RA1-50-2 Ductless Energy Recovery Ventilator is designed to supply and exhaust single-room ventilation up to 30 CFM, making it perfect for rooms up to 500 sq. ft. The unit features a high-tech ceramic energy regenerator with a maximum heat recovery efficiency of up to 93%, ensuring that you get the most out of your ventilation system while minimizing energy consumption.

The TwinFresh Expert RA1-50-2 also features reversible DC motors with a low energy demand of 3.61 W and a safe voltage of 12 V. With an integrated humidity sensor or connection to an external sensor, the unit provides a comfortable microclimate, while the integrated control system ensures easy operation.

The ventilator operates silently, producing only 0.3 Sones of noise, and is easy to mount and maintain. It also comes equipped with MERV 5 class filter for air cleaning, with the option to upgrade to MERV 14 filter for even greater filtration performance. Rated for continuous operation, the unit is frost- and condensate-free, ensuring reliable operation even in extreme weather conditions.

Delivery time / Order Processing & Shipping Times

Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

Specifications

Room SizeOne TwinFresh Expert unit in ventilation mode can serve rooms up to 500 sq. ft in accordance with ANSI/ASHRAE Standard 62.2-2016
Features
  • Unique Single Room Energy Recovery Ventilator.
  • One TwinFresh Expert unit in ventilation mode can serve rooms up to 500 sq. ft*.
  • Communication between several ventilators for coordinated operation.
  • Efficient supply and exhaust single-room ventilation up to 30 CFM.
  • High-tech ceramic energy regenerator with max. heat recovery efficiency up to 93 %.
  • Reversible DC motors with low energy demand from 3.61 W and safe voltage of 12 V.
  • Integrated humidity sensor or connection to external sensor for comfortable microclimate.
  • Integrated control system.
  • Silent operation from 0.3 Sones.
  • Easy mounting and maintenance.
  • Air cleaning with total MERV 5 class filters (optionally MERV 14 filter).
  • Rated for continuous operation.
  • Frost- and condensate-free.
Speed123
Voltage / 50 (60) Hz [V] 1~100-240
Power consumption [W]3.614.155.20
Current consumption [A]0.0250.0300.039
Air flow in ventilation mode [CFM] 91830
Air flow in regeneration mode [CFM] 4915
RPM80013001900
Sound pressure level @ 3 ft [Sones]0.61.01.2
Sound pressure level @ 10 ft [Sones]0.30.50.6
Outdoor sound pressure attenuation [Sones]2.5
Transported air temperature [°F]From +5 up to +104
Regeneration efficiency [%]Max. 93
Regenerator typeCeramic
FilterMERV 5 (option: MERV 14)
Minimum Wall Thickness5 7/8"
Ingress protectionIP24

Documentation and Tear Sheets
