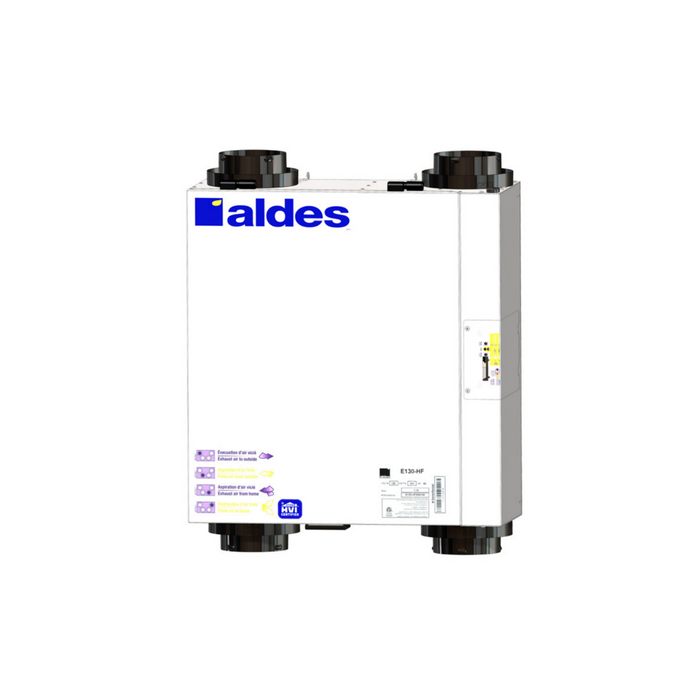

Aldes Residential Energy Recovery Ventilator (ERV) - E130-HRX-N

by Aldes
Original price $2,239.00 - Original price $2,239.00
Original price
$2,239.00 - $2,239.00
Current price $2,239.00
in stock

The powerful, low-energy-consumption ERV you’ve been looking for. Due to Its Quiet, Efficient EC Motors, the E130-HRX Energy Recovery Ventilator consumes up to 60% less electricity than the E130-HR. And it exchanges more air, with a maximum boost speed up to 15% higher than the E130-HR. Great for applications with high static pressures.

Ideal for in-suite ventilation in high-rises, the E130-HRX delivers impressive drainless enthalpic heat-recovery performance in a compact, easy-to-install package only 9-1/4 inches in height. Easily concealed in a drop-ceiling or soffit, the E130-HRX has been thoughtfully engineered for apartments, condos, and all dwellings that use concrete slab construction.

  • Model E130-HRX has a power cord
  • Model E130-HRX-N has a junction box instead of a power cord for applications that require hard-wiring to the building’s electric mains.
  • Models E130-HRX-M and E130-HRX-N-M are ‘mirrored’ versions with the indoor and outdoor ducts on the opposite sides of the ERV to simplify duct runs considerably.

    Delivery time / Order Processing & Shipping Times

    Rise ships manufacturer direct. We work hard so you receive your product(s) as quickly as possible. Learn more about our order processing & shipping times here.

    Carbon-neutral shipping with Shopify Planet
    Carbon-neutral shipping on all orders
    shipping emissions removed
    That's like...
    miles driven by an average gasoline-powered car
    We fund innovations in...
    Direct Air Capture
    Bio Oil

    Product Specifications

    Recovery Core MaterialHigh-latent-transfer (HLT)
    MountingCeiling mount brackets (included) and optional chains (P/N 609051).

    Material: Pre-painted 24-gauge galvanized steel

    Drain Connection: None

    Duct Connections: 5’’ (127 mm)

    Insulation: 1” (25 mm) Fiberglass with FSK and polystyrene

    Length: 24-1/8’’ (613 mm)

    Width: 9-1/4’’ (235 mm)

    Height: 22-3/4’’ (578 mm)

    Weight: 35 lbs (16 kg); Shipping Weight: 41 lbs (19 kg) Supply Damper: Motorized; Exhaust Damper: Gravity

    Electrical requirement

    120 VAC, 60 Hz, 2.46 A, 145 W

    Cord Set: 27” (686 mm) with ground

    Frost control

    Automatic timed integral exhaust defrost

    Cycles controlled by a temperature sensor when the outdoor

    temperature drops below 14°F (-10°C)

    Filter Type

    2 Washable Foam 20 ppi (P/N: 612405)

    Optional (sold separately): Washable MERV8 (P/N: 683961), or High Efficiency/MERV13 Equivalent (P/N: 612407)

    BlowersTwo motorized impeller (forward-curved)

    Key Features

    • Electronically and independently adjustable supply and exhaust blowers (FLEXControl)
    • Forward-curved impellers on totally enclosed EC motors
    • Horizontal configuration for flexible mounting
    • Twist-in collars for easy flex-duct attachment
    • Easy access to core and filters for cleaning
    • Durable High Latent Transfer enthalpy core has exceptional moisture transfer for increased comfort, and no drain is required.


    5 Year Unit and Core
